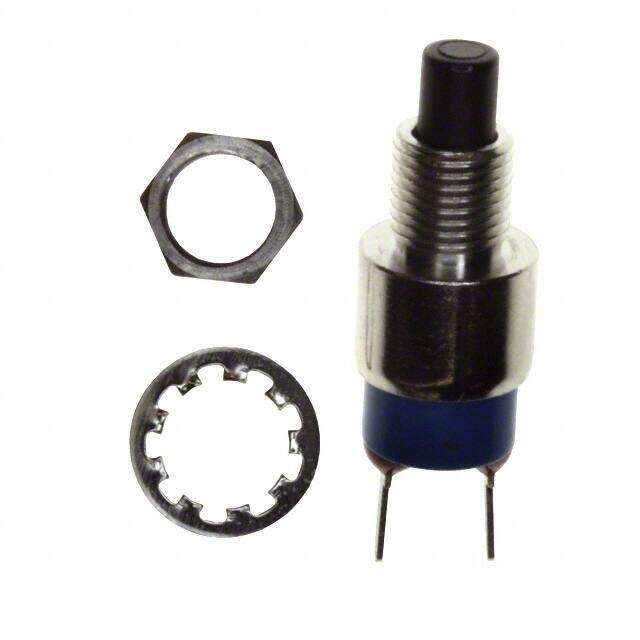

301CQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 125V
PDF
/
Buying Options
Total Price: USD $11.7
Unit Price: USD $11.699252
≥1 USD $11.699252
≥200 USD $4.668672
≥500 USD $4.512437
≥1000 USD $4.434976
Inventory: 1138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series 300
JESD-609 Code e4
Feature Overtravel
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 9.4mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
Contact Current(DC)-Max 3A
Sealing EPOXY TERMINAL SEALED
Electrical Life 250,000 Cycles
Throw Configuration SPST
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Operating Force-Max 3.48 N
Dimensions
Body Height 10.9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
