18535AD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

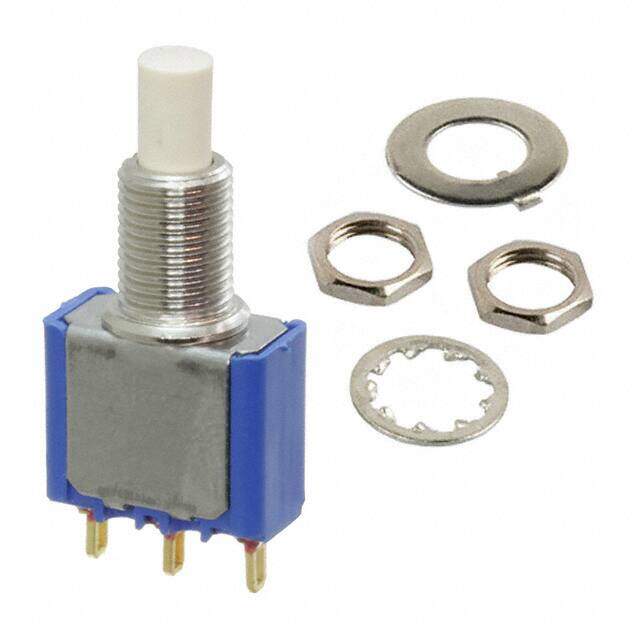

Push-button switch on-(on) 1 P, 18535AD, Apem
PDF
/
Buying Options
Total Price: USD $9.27
Unit Price: USD $9.2697
≥1 USD $9.2697
≥10 USD $8.745
≥100 USD $8.25
≥500 USD $7.78302
≥1000 USD $7.34247
≥3000 USD $6.92686
Inventory: 1145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material PBT
Actuator Material Glass, Polyamide
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Series 18000
Feature Tactile Feedback
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 13.2mm
Body Breadth 7 mm
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 50mOhm
Insulation Resistance 1GOhm
Contact Current(DC)-Max 1A
Sealing DUST PROOF; EPOXY TERMINAL SEALED; WATER PROOF
Max Voltage Rating (AC) 125V
Electrical Life 60,000 Cycles
Throw Configuration SPDT, SPST
Max Voltage Rating (DC) 30V
Contact Current Rating 1A
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@120VAC
Contact (DC) Max Rating R Load 1A@30VDC
Dimensions
Body Height 12mm
Compliance
RoHS Status ROHS3 Compliant
