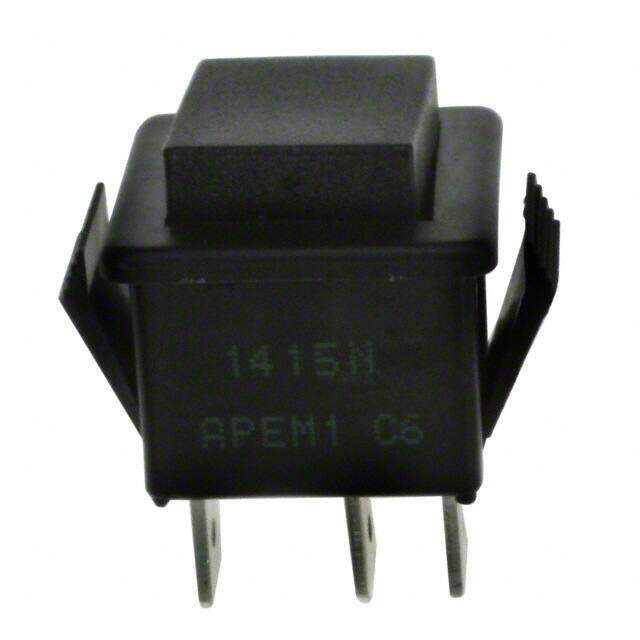

1415N8C2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 12V
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.471761
≥1 USD $1.471761
Inventory: 1348
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.137 inch
Length - Termination 0.283 inch
Body Height 14.5mm
Technical
Contact (DC) Max Rating R Load 3A@12VDC
Electrical Life 10,000 Cycles
Contact Current(DC)-Max 3A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Rectangular - 16.50mm x 14.30mm
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button
Body Breadth 18 mm
Body Length or Diameter 18mm
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 3A
Orientation Vertical
Current Rating (Amps) 3A DC
Voltage - Rated DC 12V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 1400N
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
End Contact Plating SILVER
End Contact Material COPPER
Center Contact Material COPPER
Center Contact Plating SILVER
Actuator Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 9 Weeks
