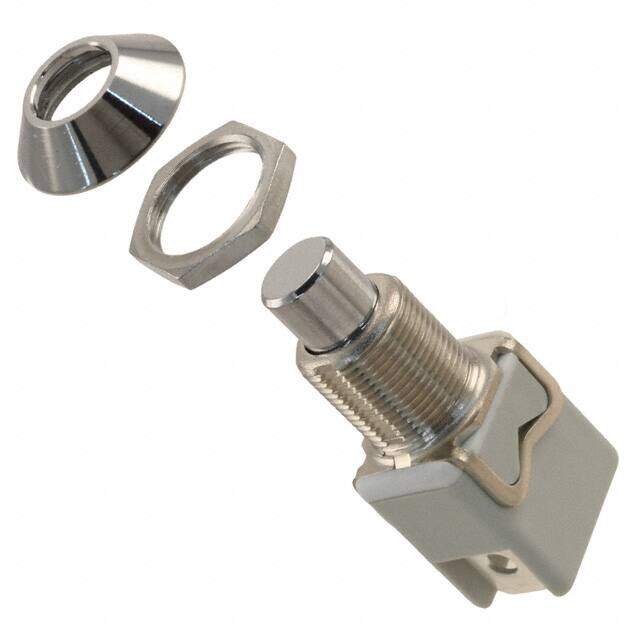

1212MA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 8A 125V
PDF
/
Buying Options
Total Price: USD $26.74
Unit Price: USD $26.7432
≥1 USD $26.7432
≥10 USD $24.28448
≥100 USD $21.96546
≥500 USD $21.146734
≥1000 USD $19.782462
≥3000 USD $16.885
Inventory: 257
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Chrome
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series 1200M
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.35
Voltage - Rated DC 24V
Current Rating (Amps) 8A AC 4A DC
Orientation Straight
Current Rating 4A
Termination Style Solder, Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Body Length or Diameter 17mm
Body Breadth 14 mm
Actuator Type Round, Plunger, Metal
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.20mm Dia
Contact Resistance 10mOhm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 8A
Max Voltage Rating (AC) 250V
Electrical Life 10,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Contact Current(AC)-Max 8A
Contact (AC) Max Rating R Load 8A@125VAC
Contact (DC) Max Rating R Load 8A@12VDC
Dimensions
Body Height 21.2mm
Actuator Length 5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
