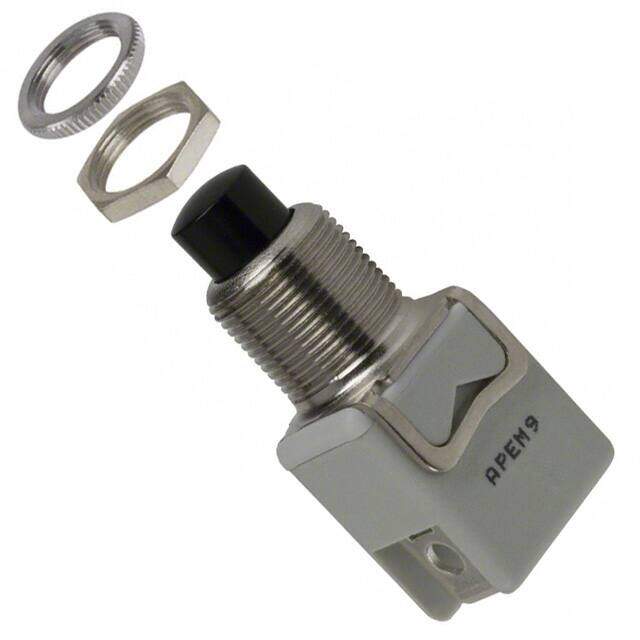

1212A2
RoHS
RoHS compliant
RoHS compliantPackage 315
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 8A 125V
PDF
/
Buying Options
Total Price: USD $6.09
Unit Price: USD $6.086439
≥1 USD $6.086439
≥10 USD $5.741929
≥100 USD $5.416911
≥500 USD $5.110296
≥1000 USD $4.821022
Inventory: 1260
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 315
Actuator Material Polyamide
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series 1200
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 24V
Current Rating (Amps) 8A AC 4A DC
Orientation Straight
Current Rating 4A
Termination Style Solder, Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Round, Plunger
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.20mm Dia
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Electrical Life 10,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Contact Current Rating 8A
Actuator Diameter 8.001 mm
Switching Current 4A
Dimensions
Actuator Length 7.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
