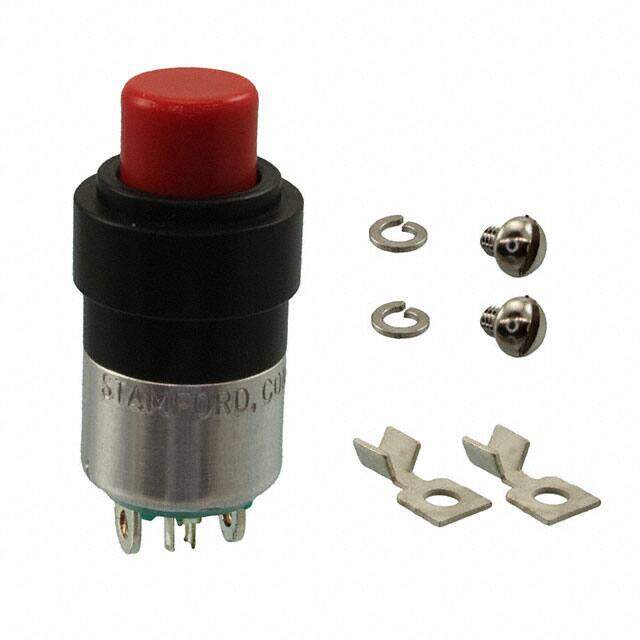

NX304AB1R-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button N.O SP Round Plunger 10A 115VAC 28VDC Momentary Contact Solder Panel Mount
PDF
/
Buying Options
Total Price: USD $48.68
Unit Price: USD $48.6816
≥1 USD $48.6816
≥10 USD $44.30272
≥100 USD $37.863408
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Front
Technical
Packaging Bulk
Series NX
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 10A AC/DC
Ingress Protection Dust Proof
Termination Style Solder Lug
Voltage - Rated AC 115V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap Red
Max Voltage Rating (AC) 115V
Throw Configuration SP
Max Voltage Rating (DC) 28V
Mechanical Life 500,000 Cycles
Compliance
RoHS Status RoHS Compliant
