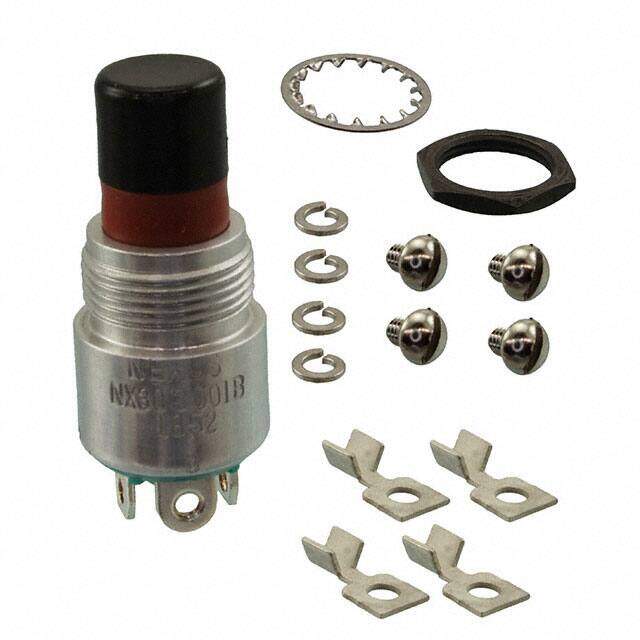

NX303001B-32 image
Favorite
NX303001B-32 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Push Button N.O./N.C. SPDT Round Plunger 10A 115VAC 28VDC Momentary Contact Solder Panel Mount
PDF
/
Buying Options
Total Price: USD $42.79
Unit Price: USD $42.7856
≥1 USD $42.7856
≥10 USD $38.93648
≥100 USD $37.125792
≥500 USD $34.635744
≥1000 USD $33.277464
≥3000 USD $31.013699
Inventory: 37
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Panel
Mounting Type Panel Mount, Rear

Technical

Packaging Bulk
Series NX
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 10A AC/DC
Ingress Protection Dust Proof
Termination Style Solder Lug
Voltage - Rated AC 115V
Actuator Type Round, Plunger
Circuit SPDT (DB/DM)
Switch Function On-Mom
Color - Actuator/Cap Black
Max Voltage Rating (AC) 115V
Throw Configuration SPDT
Max Voltage Rating (DC) 28V
Mechanical Life 500,000 Cycles

Compliance

RoHS Status RoHS Compliant
