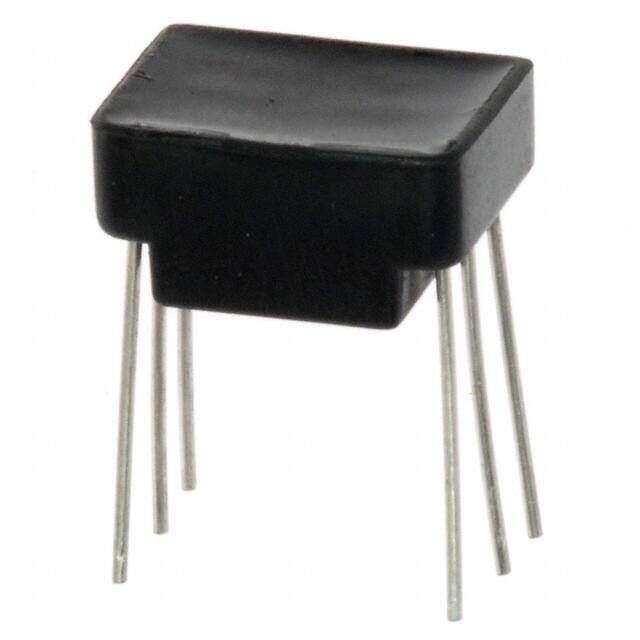

G504
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
TRANSFORMER 0.05MH 1:1:1 PULSE
PDF
/
Buying Options
Total Price: USD $39.87
Unit Price: USD $39.874351
≥1 USD $39.874351
≥10 USD $37.617305
≥100 USD $35.488027
≥500 USD $33.47927
≥1000 USD $31.584213
Inventory: 8631
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.250 6.35mm
Technical
ET (Volt-Time) 5.2VμS
Turns Ratio - Primary:Secondary 1:1:1 Ter
Transformer Type Isolation and Data Interface (Encapsulated)
DC Resistance (DCR) 1.3Ohm
Inductance 50μH
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.350Lx0.500W 8.90mmx12.70mm
Series G5
Packaging Bulk
Operating Temperature 0°C~70°C
Physical
Number of Pins 6
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 22 Weeks
Alternative Model
