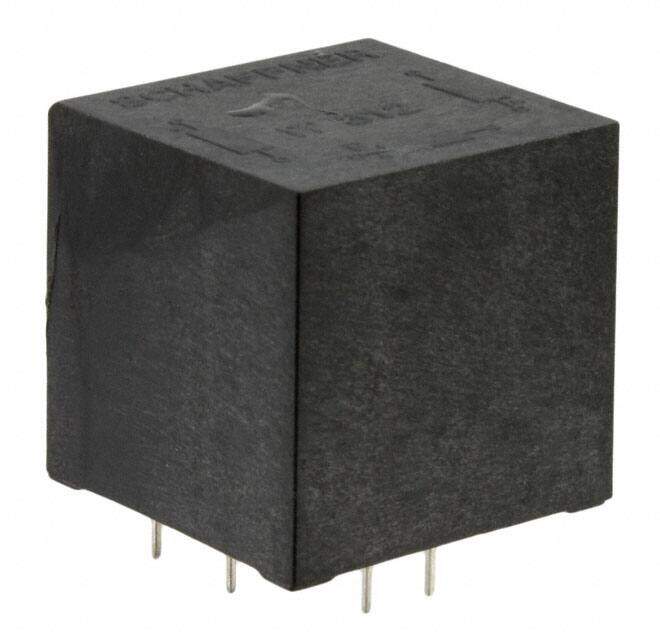

IT313 image
Favorite
IT313 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Pulse Transformers
Description Pulse Transformer 1: 1: 1 0.33Ohm Prim. DCR 0.4Ohm Sec. DCR 27pF 6 Terminal PC Pin Thru-Hole
PDF
/
Buying Options
Total Price: USD $17.15
Unit Price: USD $17.1512
≥1 USD $17.1512
≥10 USD $13.06536
≥100 USD $12.045088
≥500 USD $11.63668
≥1000 USD $11.432432
≥3000 USD $11.024174
Inventory: 452
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.992 25.20mm
Height 25mm

Technical

Load Resistance 0.33Ohm
ET Product-Min 450 V-us
Number of Primary Winding 1
Number of Secondary Winding 1
Turns Ratio - Primary:Secondary 1:1.1
Transformer Type Data/Voice Coupling
Isolation Voltage 2.5kV
Rise Time 600ns
Application GENERAL PURPOSE
Lead/Base Style PC Pin
DC Resistance (DCR) 330mOhm
Inductance 3mH
Input Voltage-Nom 380V
Physical Dimension L25.5XB25.5XH25.0 (mm)
Approval Agency UL
Frequency 40kHz
Depth 25.5mm
Number of Functions 1
Subcategory Other Transformers
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 1.004Lx1.004W 25.50mmx25.50mm
Series IT
Published 2013
Packaging Tray
Operating Temperature -25°C~70°C

Physical

Weight 0.85oz 24.22g
Number of Pins 6
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
