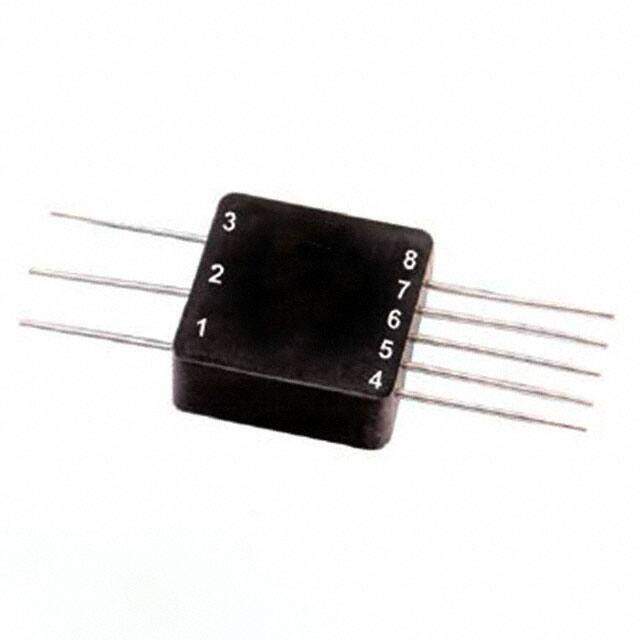

QC1553-2
RoHS
/
Package /
Category Transformers / Pulse Transformers
Description
Pulse Transformer 1.4CT:1CT/2CT:1CT 100Vrms 3.5Ohm Prim. DCR 3Ohm Sec. DCR Through Hole
PDF
/
Inventory: 2142
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.250 6.35mm
Technical
Turns Ratio - Primary:Secondary 1.4:1
Transformer Type MIL-STD-1553
DC Resistance (DCR) 3.5Ohm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.624Lx0.624W 15.86mmx15.86mm
Published 2008
Packaging Tube
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
