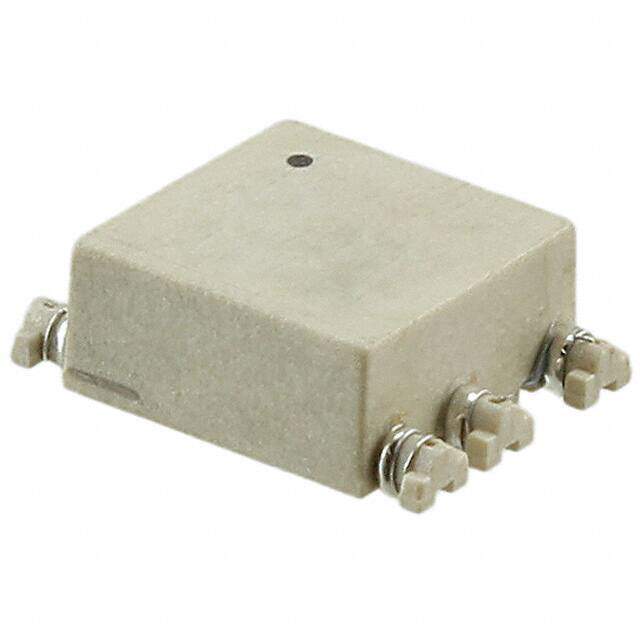

PA2005NL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
Pulse Transformer 1:1:1 1500Vrms 1.05Ohm Prim. DCR 1.05Ohm Sec. DCR 6Term. SMD
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.4112
≥1 USD $2.4112
≥10 USD $1.92632
≥100 USD $1.564992
≥500 USD $1.524864
≥1000 USD $1.484824
≥3000 USD $1.444643
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 6
Technical
Operating Temperature -40°C~130°C
Packaging Tube
Published 2008
Size / Dimension 0.340Lx0.460W 8.64mmx11.68mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature BREADTH DIM INCLUDES TERMINAL ALSO
HTS Code 8504.31.20.00
Number of Functions 3
Depth 11.68mm
Inductance 840μH
DC Resistance (DCR) 1.05Ohm
Application GATE DRIVE
Isolation Voltage 1500V
Transformer Type PULSE TRANSFORMER
Turns Ratio - Primary:Secondary 1:1.1
Number of Secondary Winding 2
Number of Primary Winding 1
ET (Volt-Time) 26VμS
ET Product-Min 28 V-us
Pulse Rise Time-Max 28ns
Dimensions
Height Seated (Max) 0.160 4.06mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
