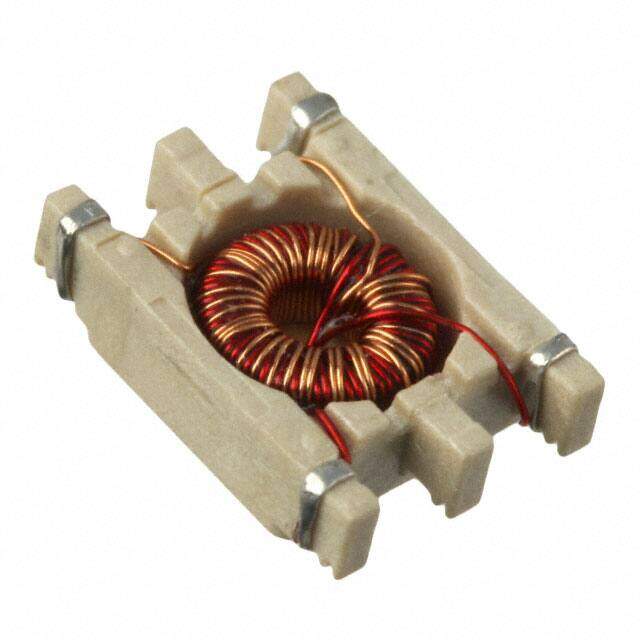

PA2001NL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
Pulse Transformer 1:1 1500Vrms 0.6Ohm Prim. DCR 0.6Ohm Sec. DCR 6Term. SMD
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8656
≥1 USD $1.8656
≥10 USD $1.49336
≥100 USD $1.213344
≥500 USD $1.15104
≥1000 USD $1.119879
≥3000 USD $1.11056
Inventory: 1193
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Technical
Operating Temperature -40°C~130°C
Packaging Tube
Published 2008
Size / Dimension 0.340Lx0.265W 8.64mmx6.73mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature BREADTH DIM INCLUDES TERMINAL ALSO
HTS Code 8504.31.20.00
Number of Functions 2
Physical Dimension L6.73XB8.64XH2.49 (mm)
Inductance 403μH
DC Resistance (DCR) 600mOhm
Application GATE DRIVE
Isolation Voltage 1500V
Transformer Type PULSE TRANSFORMER
Turns Ratio - Primary:Secondary 1:1
Turns Ratio (NpNs) 1:1
ET (Volt-Time) 12VμS
Pulse Rise Time-Max 12ns
Dimensions
Height Seated (Max) 0.098 2.49mm
Length 6.73mm
Width 8.64mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
