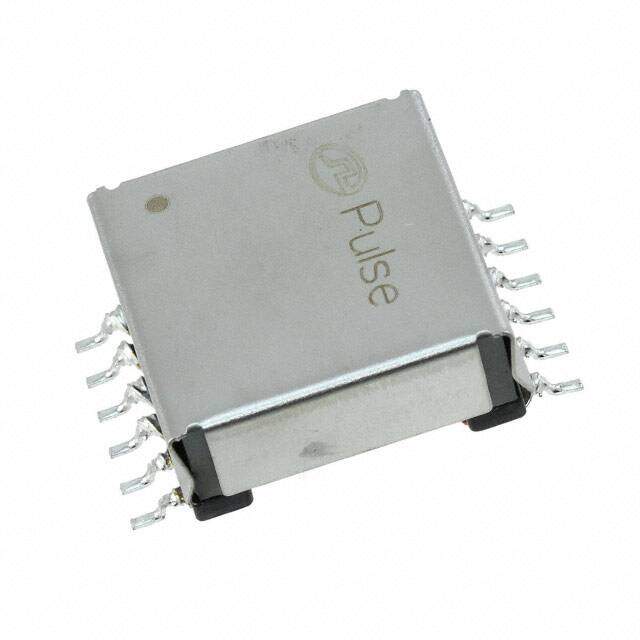

PA1835NLT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
PULSE XFMR 4.5UH
PDF
/
Buying Options
Total Price: USD $7.3
Unit Price: USD $7.295785
≥1 USD $7.295785
≥200 USD $2.912012
≥500 USD $2.814858
≥1000 USD $2.76628
Inventory: 9129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Size / Dimension 0.860Lx1.150W 21.84mmx29.21mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature LENGTH & HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Reach Compliance Code unknown
Physical Dimension L29.21XB21.84XH11.43 (mm)
Inductance 4.5μH
Output Voltage 1 3.3V
Input Voltage (Min) 9V
Input Voltage (Max) 36V
Operating Frequency-Max 200kHz
Transformer Type SMPS TRANSFORMER
Number of Secondary Winding 1
Number of Primary Winding 3
Dimensions
Height Seated (Max) 0.450 11.43mm
Length 29.21mm
Width 21.84mm
Compliance
RoHS Status RoHS Compliant
