PA1283NLT
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description

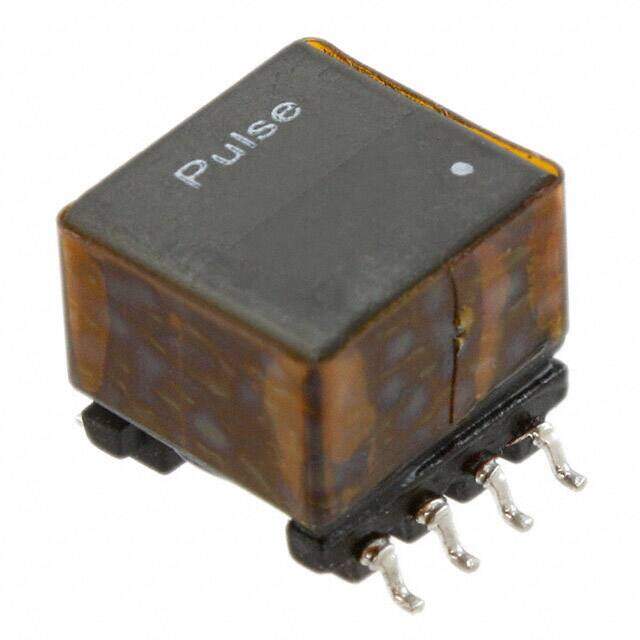

Switching Transformer 1:0.273:0.682 0.57Ohm/1Ohm Prim. DCR 0.04Ohm Sec. DCR 7W 8Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $3.73
Unit Price: USD $3.7312
≥1 USD $3.7312
≥10 USD $3.02632
≥100 USD $2.447104
≥500 USD $2.2924
≥1000 USD $2.189352
Inventory: 614
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.451 11.45mm
Technical
Number of Primary Winding 2
Number of Secondary Winding 1
Turns Ratio - Primary:Secondary 1:0.273
Transformer Type Isolation and Data Interface (Encapsulated)
Operating Frequency-Max 200kHz
Input Voltage (Max) 57V
Input Voltage (Min) 33V
Output Voltage 1 5V
Lead/Base Style Gull Wing
Element Configuration Single
DC Resistance (DCR) 40mOhm
Inductance 155μH
Depth 15.24mm
Power Rating 7W
Additional Feature WIDTH AND HEIGHT DIMENSION INCLUDES TERMINAL ALSO
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.515Lx0.600W 13.08mmx15.24mm
Series EP10
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 8
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
