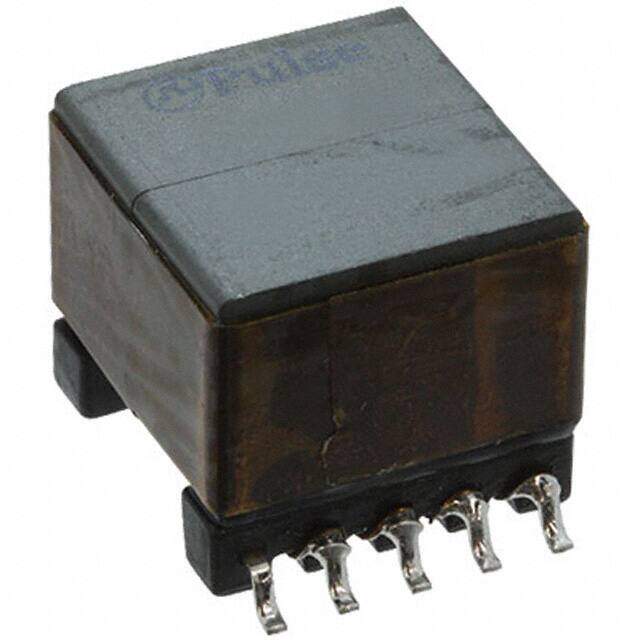

PA1137NLT
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Transformers / Pulse Transformers
Description
XFRMR 5V 13.5W 127UH POE EP13
PDF
/
Buying Options
Total Price: USD $4.13
Unit Price: USD $4.1272
≥1 USD $4.1272
≥10 USD $3.34224
≥100 USD $2.701952
≥500 USD $2.531232
Inventory: 1938
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 14mm
Height Seated (Max) 0.500 12.70mm
Height 12.7mm
Technical
Number of Primary Winding 2
Number of Secondary Winding 1
Turns Ratio - Primary:Secondary 1:0.125
Transformer Type Isolation and Data Interface (Encapsulated)
Operating Frequency-Max 200kHz
Input Voltage (Max) 57V
Input Voltage (Min) 33V
Output Voltage 1 5V
Lead/Base Style Gull Wing
Element Configuration Single
Inductance 127μH
Physical Dimension L14.0XB17.65XH12.07 (mm)
Current Rating 20mA
Depth 17.65mm
Shielding Unshielded
Power Rating 13.5W
Additional Feature BREADTH DIM INCLUDES TERMINAL ALSO, FLYBACK TRANSFORMER
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.551Lx0.695W 14.00mmx17.65mm
Series EP13
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 10
Package / Case 125
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
