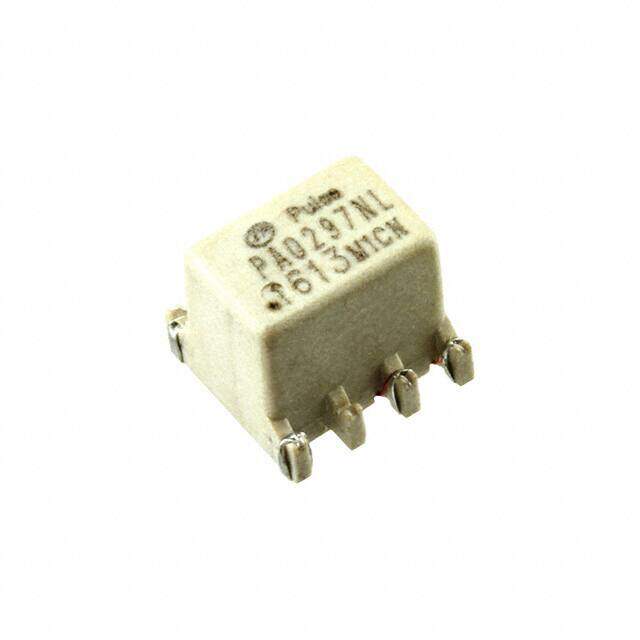

PA0297NLT image
Favorite
PA0297NLT image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Pulse Transformers
Description PULSE XFMR 2:1:1 1200UH
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.6048
≥1 USD $2.6048
≥10 USD $2.08296
≥100 USD $1.692416
≥500 USD $1.64912
≥1000 USD $1.605648
Inventory: 3557
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 9mm
Height Seated (Max) 0.300 7.62mm

Technical

ET Product-Min 27.2 V-us
ET (Volt-Time) 27.2VμS
Turns Ratio - Primary:Secondary 2.1:1
Transformer Type PULSE TRANSFORMER
Isolation Voltage 1500V
Application GATE DRIVE
DC Resistance (DCR) 910mOhm
Inductance 1.2mH
Depth 8.64mm
Number of Functions 1
Additional Feature LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.355Lx0.340W 9.02mmx8.64mm
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C

Physical

Number of Pins 8
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
