PA0185NL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description

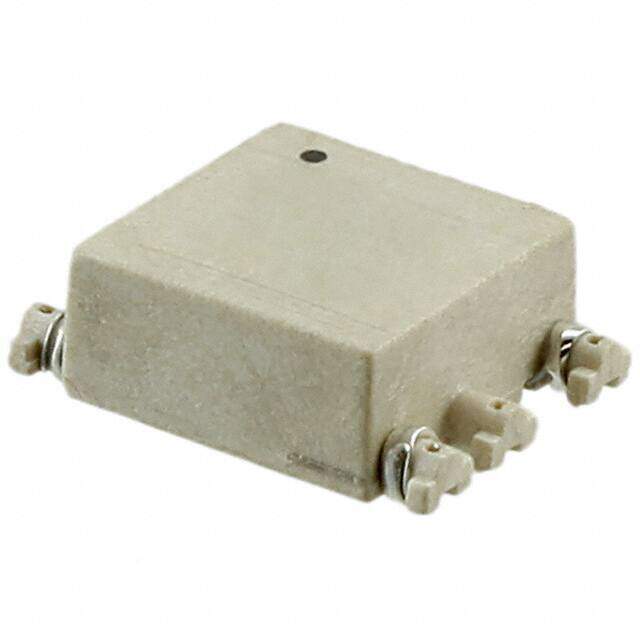

XFMR GA-DR 1.4MH 1:1 SMD NPB
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.9624
≥1 USD $1.9624
≥10 USD $1.59368
≥100 USD $1.28832
≥500 USD $1.20692
≥1000 USD $1.19372
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 8.8mm
Length 11.8mm
Height Seated (Max) 0.160 4.06mm
Technical
ET Product-Min 17.2 V-us
ET (Volt-Time) 17.2VμS
Turns Ratio (NpNs) 1:1
Turns Ratio - Primary:Secondary 1:1
Transformer Type PULSE TRANSFORMER
Isolation Voltage 1500V
Application GATE DRIVE
DC Resistance (DCR) 880mOhm
Inductance 980μH
Physical Dimension L11.8XB8.8XH4.0 (mm)
Number of Functions 1
Additional Feature LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.340Lx0.460W 8.64mmx11.68mm
Published 2008
Packaging Tube
Operating Temperature -40°C~130°C
Physical
Mounting Type Surface Mount
Mount Surface Mount
