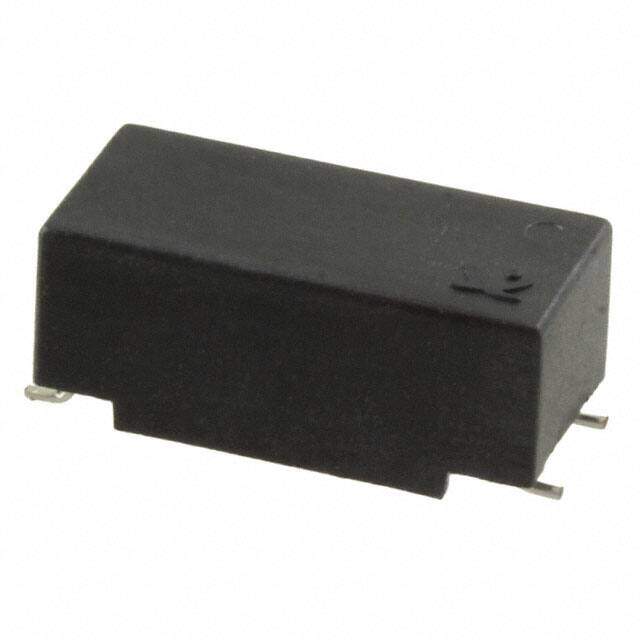

T5004 image
Favorite
RoHS
/
Package /
Category Transformers / Pulse Transformers
Description Telecom Transformer 1:2.5 1500Vrms 1.5Ohm Prim. DCR 3.8Ohm Sec. DCR Surface Mount
PDF
/
Inventory: 6840
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount

Technical

Published 2012
Part Status Obsolete
Moisture Sensitivity Level (MSL) Vendor Undefined
ECCN Code EAR99
Additional Feature COMMON MODE CHOKES AVAILABLE, COMPATIBLE WITH MC145474; MC145475; MC145574; T7250C; T7259
Packing Method TUBE
Number of Functions 1
Approval Agency UL; BABT
Operating Temperature (Max) 70°C
Physical Dimension 12.5mm X 11.73mm X 4.24mm
DC Resistance (DCR) 1.5Ohm
Lead/Base Style Gull Wing
Application ISDN
Isolation Voltage 1.5kV
Transformer Type DATACOM TRANSFORMER
Turns Ratio - Primary:Secondary 1:2.5
Primary Inductance 22000 μH

Dimensions

Height 4.24mm
Length 12.5mm
Width 11.73mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
