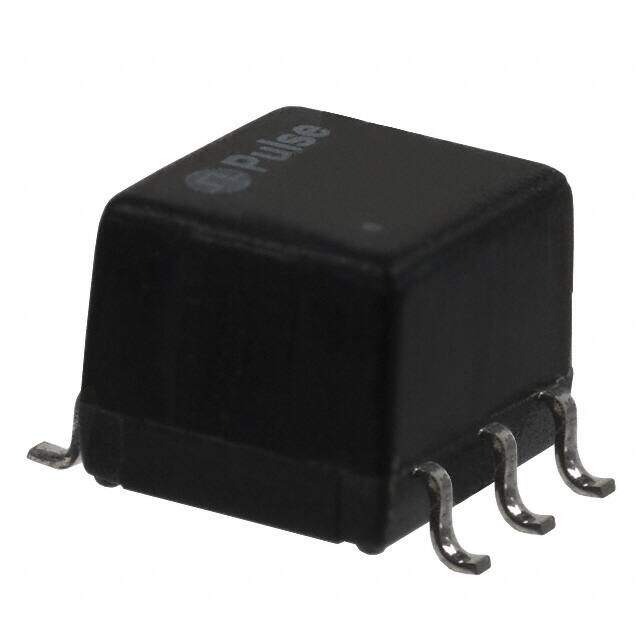

T3001NL image
Favorite
T3001NL image
Favorite
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Transformers / Pulse Transformers
Description TRANSFORMER TELECOM SINGLE T3/E4
PDF
/
Buying Options
Total Price: USD $6.55
Unit Price: USD $6.5472
≥1 USD $6.5472
≥10 USD $4.97816
≥100 USD $4.84704
≥500 USD $4.454058
≥1000 USD $4.192003
≥3000 USD $4.061015
Inventory: 557
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 7mm
Height Seated (Max) 0.250 6.35mm
Height 6.35mm

Technical

Turns Ratio - Primary:Secondary 1:1
Transformer Type T3/E3 (Single)
Isolation Voltage 1.5kV
Operating Frequency-Min 200kHz
Operating Frequency-Max 340000kHz
Lead/Base Style Gull Wing
Inductance 100μH
Approval Agency UL
Depth 9.91mm
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.300Lx0.275W 7.62mmx7.00mm
Published 2007
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 6
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
