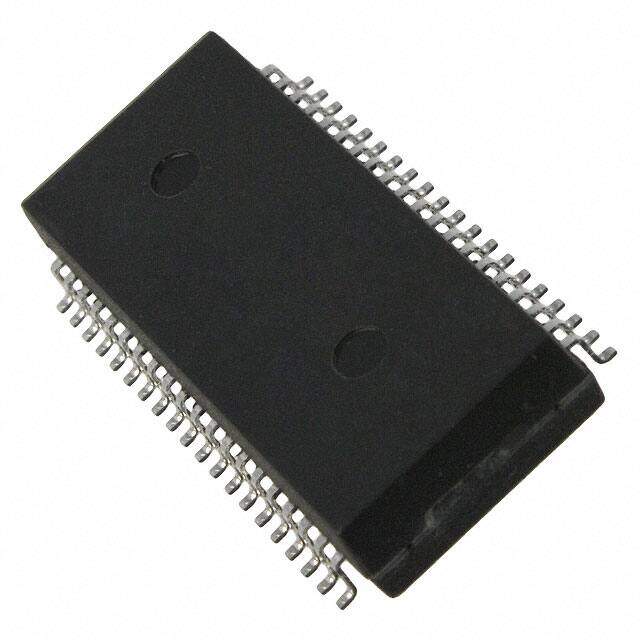

T1108NL
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT
PDF
/
Buying Options
Total Price: USD $9.36
Unit Price: USD $9.3632
≥1 USD $9.3632
≥10 USD $7.17024
≥100 USD $6.07493
≥500 USD $5.97535
≥1000 USD $5.676669
≥3000 USD $5.616882
Inventory: 426
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 12.32mm
Length 28.58mm
Height Seated (Max) 0.230 5.84mm
Height 12.19mm
Technical
Return Loss 11 dB
Turns Ratio - Primary:Secondary 1:2
Transformer Type T1/E1 (Quad)
Isolation Voltage 1.5kV
Lead/Base Style Gull Wing
Inductance 1.2mH, 1.2mH
Physical Dimension L28.58XB12.32XH5.84 (mm)
Depth 16.26mm
Shielding Unshielded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Size / Dimension 1.125Lx0.485W 28.58mmx12.32mm
Published 2009
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 40
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
