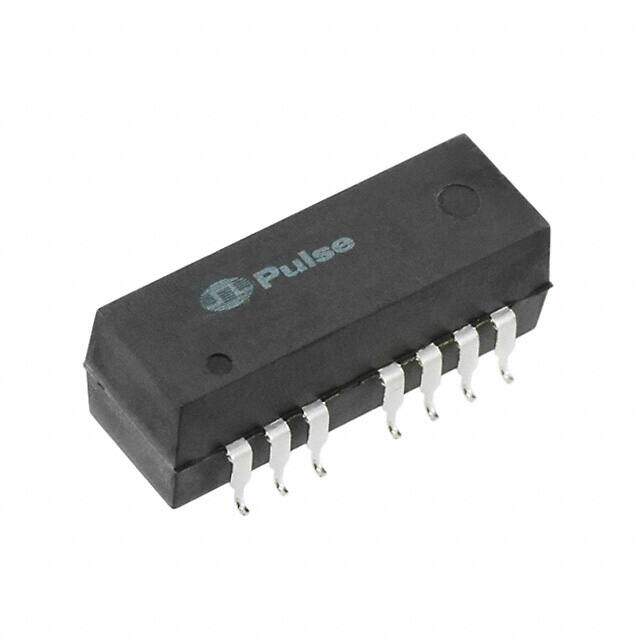

PE-68515LNL
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
XFRMR MODULE 1PORT 1:1 10/100B-T
PDF
/
Buying Options
Total Price: USD $6.65
Unit Price: USD $6.6528
≥1 USD $6.6528
≥10 USD $5.17308
≥100 USD $4.33444
≥500 USD $4.138552
≥1000 USD $4.054706
≥3000 USD $3.984781
Inventory: 778
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 25.4mm
Height Seated (Max) 0.370 9.40mm
Height 9.4mm
Technical
Turns Ratio (NpNs) 1:1
Number of Secondary Winding 111
Return Loss -18 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1.5kV
Insertion Loss (dB) -1 dB
Operating Frequency-Min 100kHz
Operating Frequency-Max 100000kHz
Application GENERAL PURPOSE
Lead/Base Style Gull Wing
Physical Dimension L25.4XB12.95XH9.4 (mm)
Approval Agency IEEE
Depth 12.95mm
Number of Functions 1
Shielding Unshielded
Subcategory Other Transformers
HTS Code 8504.31.20.00
Additional Feature COMPATIBLE WITH BROADCOM; INTEL; ICS; TDK; MIRCEL & NATIONAL SEMICONDUCTOR
Terminal Finish Tin/Copper (Sn/Cu)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 1.000Lx0.350W 25.40mmx8.89mm
Published 2008
Packaging Tube
Operating Temperature 0°C~70°C
Physical
Weight 0.09oz 2.56g
Number of Pins 16
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
