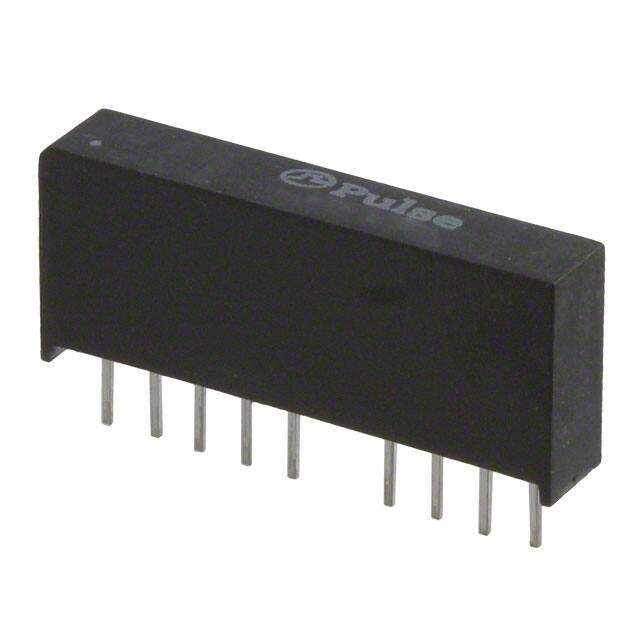

PE-68017S image
Favorite
PE-68017S image
Favorite
RoHS
/
Package Module
Category Transformers / Pulse Transformers
Description MODULE FILTER SNGL LAN 10-SIL
PDF
/
Inventory: 4976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Module
Weight 0.09oz 2.56g

Technical

Published 1998
Size / Dimension 1.000Lx0.210W 25.40mmx5.33mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
ECCN Code EAR99
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Packing Method TUBE
Number of Functions 1
Physical Dimension 25.4mm X 5.33mm X 11.43mm
Application LAN; 10 BASE-T
Isolation Voltage 1.5kV
Transformer Type Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary 1CT:1CT
Turns Ratio (NpNs) 1:1; 1:1

Dimensions

Height 11.43mm
Height Seated (Max) 0.450 11.43mm
Length 25.4mm
Width 5.33mm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
