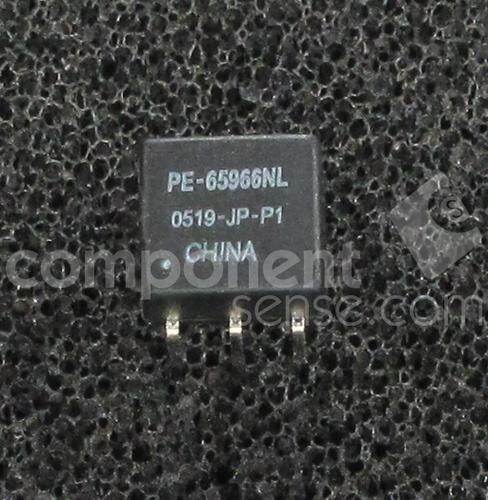

PE-65966NL
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1:1 6Term. PC Pin Thru-Hole
PDF
/
Buying Options
Total Price: USD $4.77
Unit Price: USD $4.77185
≥1 USD $4.77185
≥10 USD $3.91495
≥100 USD $3.79335
≥500 USD $3.6708
≥1000 USD $3.54825
Inventory: 2695
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Number of Pins 6
Weight 0.14oz 3.99g
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2009
Size / Dimension 0.300Lx0.275W 7.62mmx7.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Depth 7mm
Approval Agency UL
Inductance 40μH
Lead/Base Style PC Pin
Operating Frequency-Max 340000kHz
Operating Frequency-Min 200kHz
Transformer Type T3/E3 (Single)
Turns Ratio - Primary:Secondary 1:1
Dimensions
Height Seated (Max) 0.245 6.23mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
