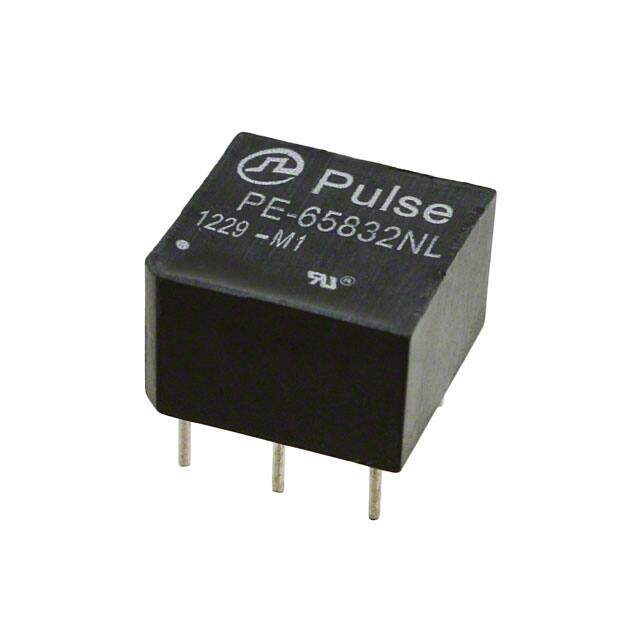

PE-65832NL image
Favorite
PE-65832NL image
Favorite
RoHS
RoHS RoHS compliant
Package DIP
Category Transformers / Pulse Transformers
Description XFRMR 1:1.36CT 1.20MH T/H
PDF
/
Buying Options
Total Price: USD $42.31
Unit Price: USD $42.3054
≥1 USD $42.3054
≥10 USD $34.713
≥100 USD $33.6281
≥500 USD $32.5432
≥1000 USD $31.4583
Inventory: 2403
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Number of Pins 10
Weight 0.14oz 3.99g

Technical

Operating Temperature 0°C~70°C
Packaging Tube
Published 2008
Size / Dimension 0.560Lx0.560W 14.22mmx14.22mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
ECCN Code EAR99
Subcategory Other Transformers
Shielding Unshielded
Depth 14.22mm
Approval Agency UL
Inductance 1.2mH
DC Resistance (DCR) 700mOhm
Lead/Base Style PC Pin
Application SIGNAL
Isolation Voltage 1.5kV
Transformer Type T1/E1 (Single)
Turns Ratio - Primary:Secondary 1:1.36
Return Loss 11 dB
Number of Secondary Winding 2
Number of Primary Winding 1
Load Resistance 0.9Ohm

Dimensions

Height 10.2mm
Height Seated (Max) 0.402 10.20mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
