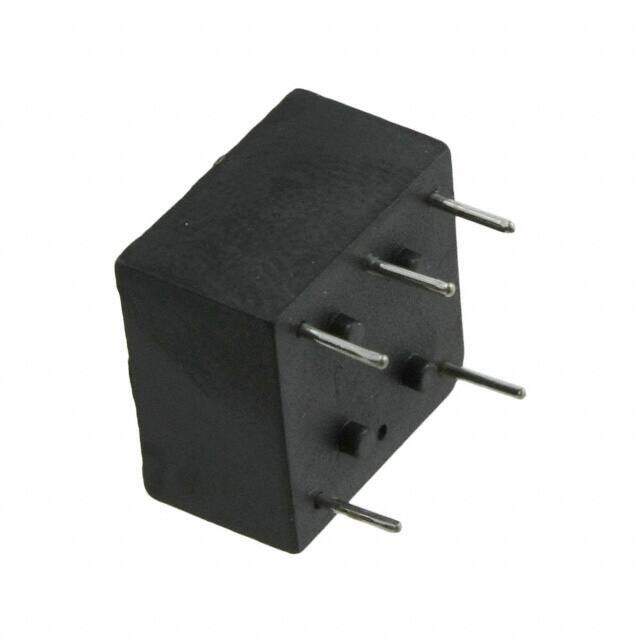

PE-65535NL image
Favorite
PE-65535NL image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Pulse Transformers
Description XFRMR 64KBPS 1:2CT 20MH T/H
PDF
/
Buying Options
Total Price: USD $7
Unit Price: USD $6.996
≥1 USD $6.996
≥10 USD $5.44016
≥100 USD $5.292822
≥500 USD $4.557775
≥1000 USD $4.351978
≥3000 USD $4.263723
Inventory: 990
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 11.58mm
Length 17.15mm
Height Seated (Max) 0.402 10.20mm
Height 10.2mm

Technical

Turns Ratio - Primary:Secondary 1:2
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1.5kV
Application GENERAL PURPOSE
Lead/Base Style PC Pin
DC Resistance (DCR) 2.65Ohm
Inductance 20mH
Depth 14.2mm
Number of Functions 2
Shielding Unshielded
Additional Feature HEIGHT DIM INCLUDES TERMINAL ALSO
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.559Lx0.559W 14.20mmx14.20mm
Published 2003
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Weight 0.14oz 3.99g
Number of Pins 6
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
