PE-64996NL

Pulse Electronics Network
RoHS
/
Package /
Category Transformers / Pulse Transformers
Description Telecom Transformer 1CT:2.5CS 2000Vrms 2.5Ohm Prim. DCR 5.8Ohm Sec. DCR Through Hole
PDF
/
Inventory: 7091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.402 10.20mm

Technical

Turns Ratio - Primary:Secondary 1:2.5
Transformer Type Isolation and Data Interface (Encapsulated)
Lead/Base Style PC Pin
DC Resistance (DCR) 2.5Ohm
Inductance 22mH
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.559Lx0.559W 14.20mmx14.20mm
Published 2006
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Weight 0.14oz 3.99g
Mounting Type Through Hole
Mount Through Hole

Alternative Model

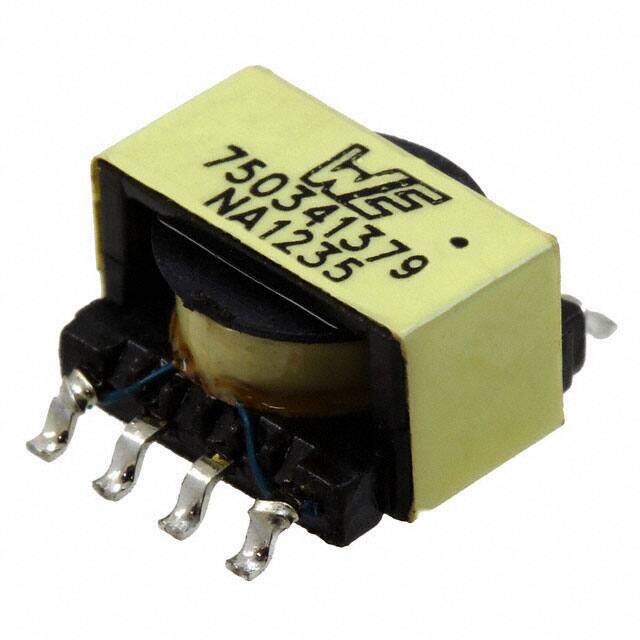

750341379

750341379

Würth Elektronik

Recommended For You

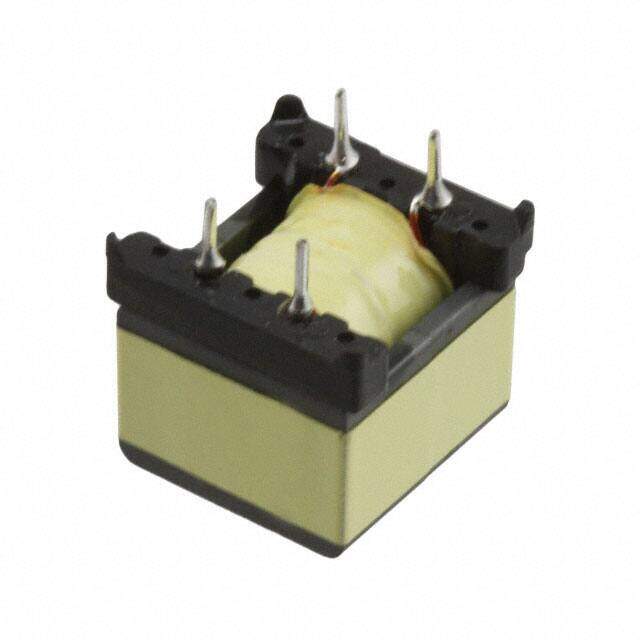

750311524
