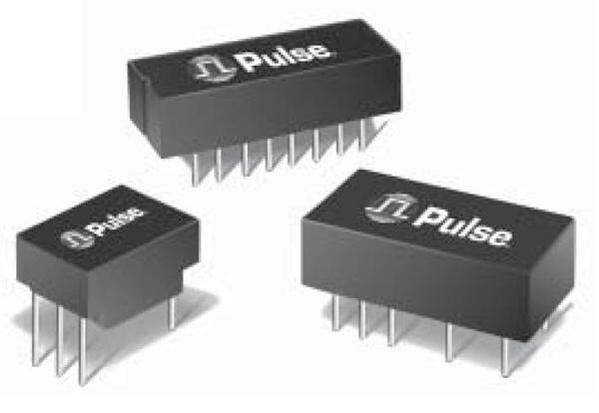

PE-64953 image
Favorite
PE-64953 image
Favorite

PE-64953

Pulse Electronics Network
RoHS
/
Package /
Category Transformers / Pulse Transformers
Description TRANSFORMER
PDF
/
Inventory: 2804
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Through Hole
Surface Mount NO

Technical

Published 2009
Size / Dimension 0.800Lx0.386W 20.32mmx9.80mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature TURNS RATIO: 1:2CT; 1:2CT
Packing Method TUBE
Approval Agency UL
Operating Temperature (Max) 70°C
Physical Dimension L20.32XB9.8XH6.35 (mm)
Inductance 2mH, 2mH
Transformer Type T1/E1 (Dual)
Turns Ratio - Primary:Secondary 1:2CT, 1:2CT

Dimensions

Height Seated (Max) 0.250 6.35mm
Length 20.32mm
Width 9.8mm

Compliance

RoHS Status Non-RoHS Compliant

Alternative Model

N-11MG

N-11MG

Triad Magnetics
