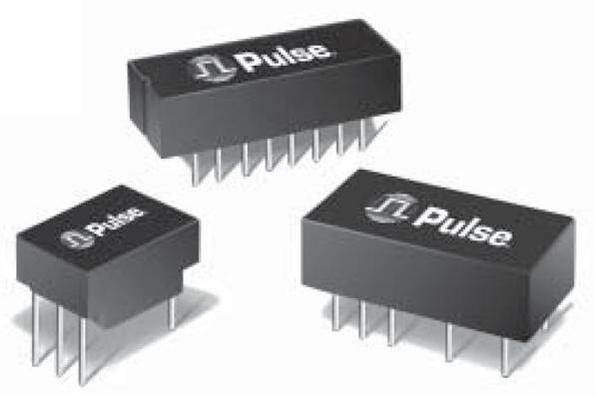

PE-64943
RoHS
/
Package DIP
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1CT:2CT 0.7Ohm Prim. DCR 1.2Ohm Sec. DCR 6Term. PC Pin Thru-Hole
PDF
/
Buying Options
Total Price: USD $2.84
Unit Price: USD $2.83765
≥1 USD $2.83765
≥10 USD $2.32845
≥100 USD $2.25625
≥500 USD $2.1831
≥1000 USD $2.10995
Inventory: 39503
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Number of Pins 6
Technical
Published 2012
Size / Dimension 0.500Lx0.350W 12.70mmx8.89mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Shielding Unshielded
Depth 8.89mm
Inductance 1.2mH
DC Resistance (DCR) 700mOhm
Lead/Base Style PC Pin
Isolation Voltage 1.5kV
Transformer Type T1/E1 (Single)
Turns Ratio - Primary:Secondary 1:2
Return Loss 11 dB
Dimensions
Height 6.35mm
Height Seated (Max) 0.250 6.35mm
Length 12.7mm
Width 8.89mm
Compliance
RoHS Status Non-RoHS Compliant
