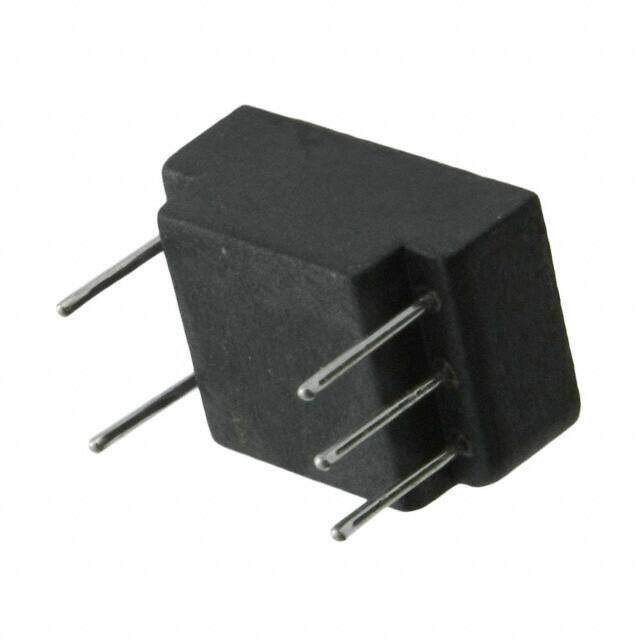

PE-64936NL
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Transformers / Pulse Transformers
Description
XFRMR T1/CEPT/ISDN-PRI 1CT:1
PDF
/
Buying Options
Total Price: USD $2.81
Unit Price: USD $2.8072
≥1 USD $2.8072
≥10 USD $2.7632
≥100 USD $2.7104
≥500 USD $2.6488
Inventory: 1025
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 12.7mm
Height Seated (Max) 0.250 6.35mm
Height 6.35mm
Technical
Load Resistance 0.7Ohm
Number of Primary Winding 1
Number of Secondary Winding 1
Return Loss 11 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type T1/E1 (Single)
Isolation Voltage 1.5kV
Application SIGNAL
Lead/Base Style PC Pin
DC Resistance (DCR) 700mOhm
Inductance 1.2mH
Approval Agency UL
Depth 8.89mm
Shielding Unshielded
Subcategory Other Transformers
ECCN Code EAR99
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.500Lx0.350W 12.70mmx8.89mm
Published 2008
Packaging Tube
Operating Temperature 0°C~70°C
Physical
Weight 0.07oz 1.99g
Number of Pins 6
Package / Case DIP
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
