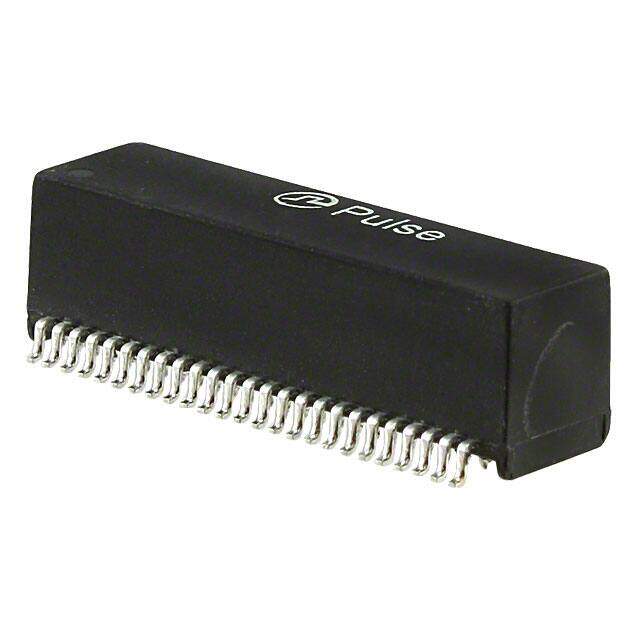

HX5020T
RoHS
/
Package Module
Category Transformers / Pulse Transformers
Description
TRANSFORMER MODULE GIGABIT 2PORT
PDF
/
Inventory: 1793
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.54mm
Length 27.54mm
Height Seated (Max) 0.341 8.66mm
Height 8.33mm
Technical
Turns Ratio (NpNs) 1:1
Return Loss -10 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1.5kV
Insertion Loss (dB) 1 dB
Application 1000 BASE-T
Lead/Base Style Gull Wing
Physical Dimension L27.54XB7.54XH8.33 (mm)
Depth 10.92mm
Number of Functions 4
Shielding Unshielded
Additional Feature HEIGHT DIM INCLUDES TERMINALS ALSO
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Size / Dimension 1.100Lx0.297W 27.94mmx7.54mm
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40┬?C~85┬?C
Physical
Weight 0.06oz 1.71g
Number of Pins 50
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
