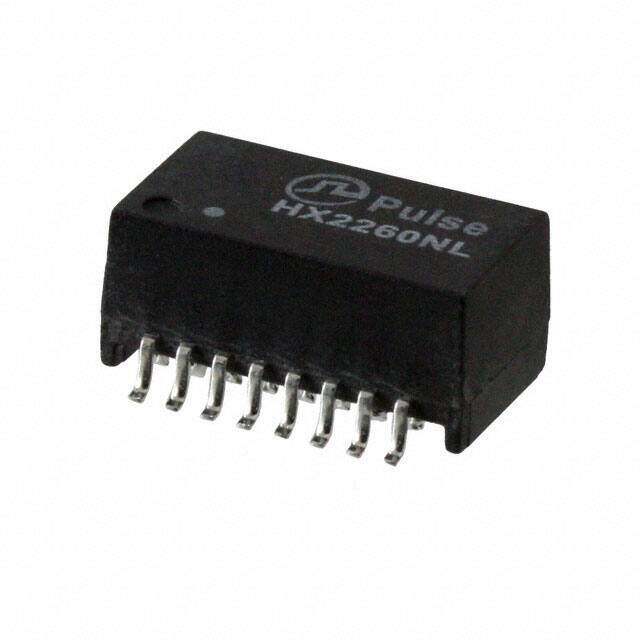

HX2260NLT
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
XFRMR MODUL 1PORT POE 1:1 10/100
PDF
/
Buying Options
Total Price: USD $4.02
Unit Price: USD $4.0216
≥1 USD $4.0216
≥10 USD $3.25864
≥100 USD $2.634368
≥500 USD $2.468048
≥1000 USD $2.35708
≥3000 USD $2.287789
Inventory: 354
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.11mm
Length 12.7mm
Height Seated (Max) 0.245 6.22mm
Technical
Turns Ratio (NpNs) 1:1
Return Loss -10 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1500V
Insertion Loss (dB) -1.1 dB
Application 10/100 BASE-TX; ETHERNET
Lead/Base Style Gull Wing
DC Resistance (DCR) 650mOhm
Physical Dimension L12.7XB7.11XH6.0 (mm)
Depth 9.65mm
Number of Functions 1
Additional Feature HEIGHT DIMENSION INCLUDES TERMINALS ALSO
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.500Lx0.280W 12.70mmx7.11mm
Series Star Magnetics?
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Weight 0.1oz 2.85g
Number of Pins 16
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
