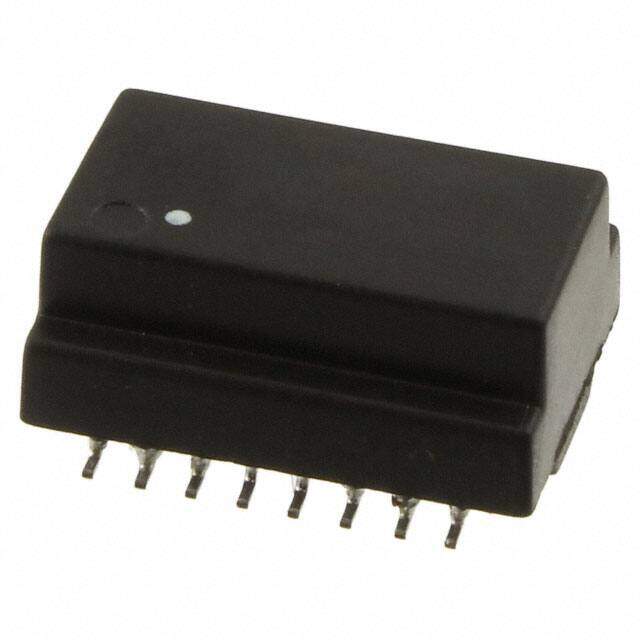

HX1260FNLT
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
PDF
/
Buying Options
Total Price: USD $4.4
Unit Price: USD $4.4
≥1 USD $4.4
≥10 USD $3.56928
≥100 USD $2.885696
≥500 USD $2.70336
≥1000 USD $2.58192
≥3000 USD $2.505958
Inventory: 1322
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Number of Pins 16
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2013
Size / Dimension 0.500Lx0.358W 12.70mmx9.09mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature HEIGHT DIMENSION INCLUDES TERMINALS ALSO
Packing Method TR
Number of Functions 1
Physical Dimension L12.7XB9.09XH5.99 (mm)
Inductance 350μH
Lead/Base Style Gull Wing
Application GENERAL PURPOSE
Isolation Voltage 1500V
Transformer Type LAN 10/100 Base-T
Turns Ratio - Primary:Secondary 1:1
Dimensions
Height Seated (Max) 0.236 5.99mm
Length 12.7mm
Width 9.09mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
