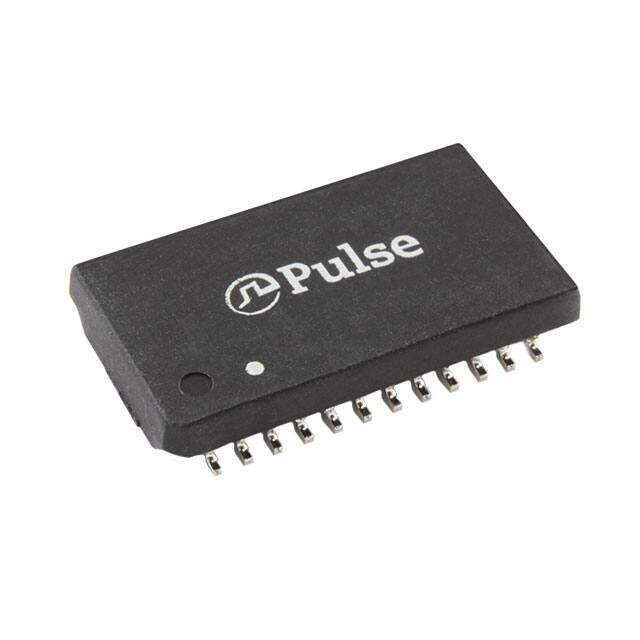

HM5149NL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
TRANSFORMER, 1: 1, AEC-Q200, 1000BASE-T; Inductance: 360?H; Product Range: - RoHS Compliant: Yes
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.153215
≥1 USD $2.153215
≥10 USD $1.83141
≥100 USD $1.631263
≥500 USD $1.389255
Inventory: 143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 9.91mm
Length 17.78mm
Height Seated (Max) 0.126 3.20mm
Technical
Turns Ratio - Primary:Secondary 1CT:1CT Transmitter, 1CT:1CT Receiver
Transformer Type LAN 10/100/1000 Base-T
Isolation Voltage 1500V
Application GENERAL PURPOSE
Inductance 360μH
Physical Dimension L17.78XB9.91XH3.2 (mm)
Approval Agency AEC-Q200
Number of Functions 4
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.700Lx0.410W 17.78mmx10.41mm
Published 2016
Packaging Tube
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
