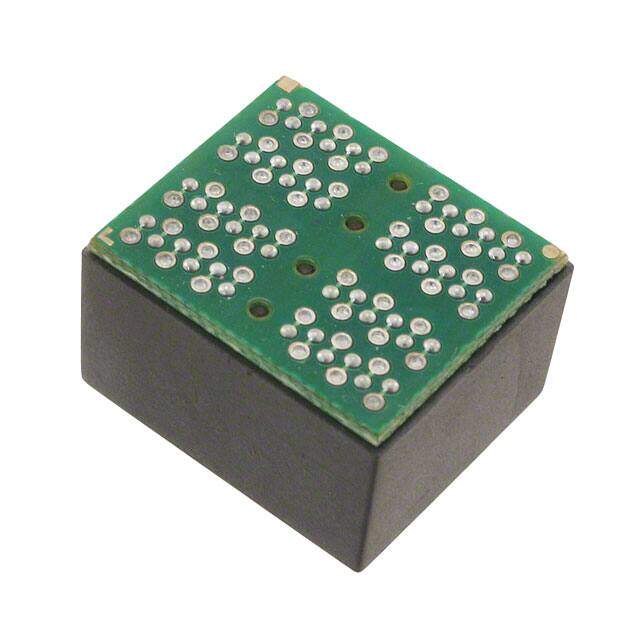

H5200NL
RoHS
RoHS compliant
RoHS compliantPackage BGA
Category Transformers / Pulse Transformers
Description
MODULE XFORMR DUAL GIGABIT SMD
PDF
/
Buying Options
Total Price: USD $12.1
Unit Price: USD $12.1
≥1 USD $12.1
≥10 USD $8.93992
≥100 USD $8.25264
≥500 USD $7.97742
≥1000 USD $7.757411
≥3000 USD $7.647341
Inventory: 152
Minimum: 1
-
+
Technical Details
Technical
Packaging Tray
Published 2009
Size / Dimension 0.580Lx0.680W 14.73mmx17.27mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Connector Type TELECOM AND DATACOM CONNECTOR
Depth 17.27mm
Inductance 350 μH
DC Resistance (DCR) 650mOhm
Insertion Loss (dB) -1.2 dB
Isolation Voltage 1.5kV
Turns Ratio - Primary:Secondary 1:1
Return Loss -16 dB
Operating Temperature 0°C~70°C
Dimensions
Height 11.18mm
Height Seated (Max) 0.430 10.92mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Physical
Weight 0.18oz 5.13g
Number of Pins 24
Package / Case BGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
