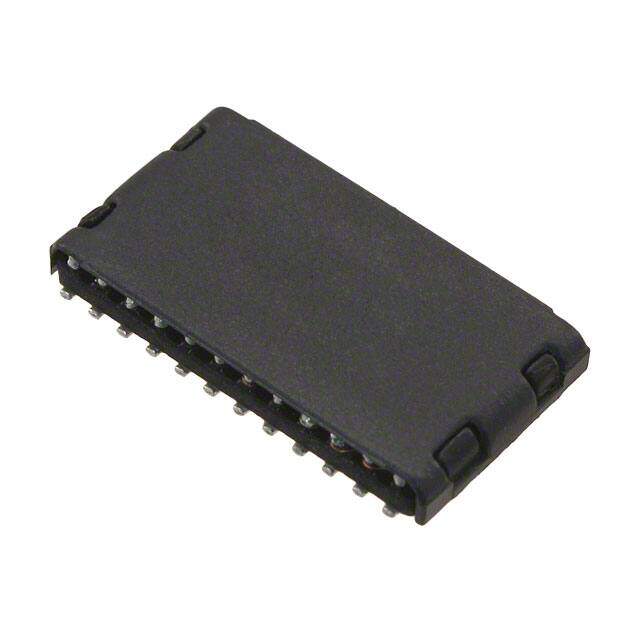

H5120NLT
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
MODULE MAGNETIC 1PORT 1000BASE-T
PDF
/
Buying Options
Total Price: USD $9.01
Unit Price: USD $9.0112
≥1 USD $9.0112
≥10 USD $6.90448
≥100 USD $5.849888
≥500 USD $5.754144
≥1000 USD $5.466384
≥3000 USD $5.408832
Inventory: 1365
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 24
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 0.650Lx0.365W 16.51mmx9.27mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature HEIGHT DIMENSION INCLUDE TERMINALS ALSO
Number of Functions 4
Depth 9.65mm
Physical Dimension L16.51XB9.27XH2.08 (mm)
Lead/Base Style Gull Wing
Application 10/100/1000 BASE-T; ETHERNET
Insertion Loss (dB) 1 dB
Isolation Voltage 1500V
Transformer Type Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary 1:1
Return Loss -10 dB
Dimensions
Height Seated (Max) 0.082 2.08mm
Length 16.51mm
Width 9.27mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
