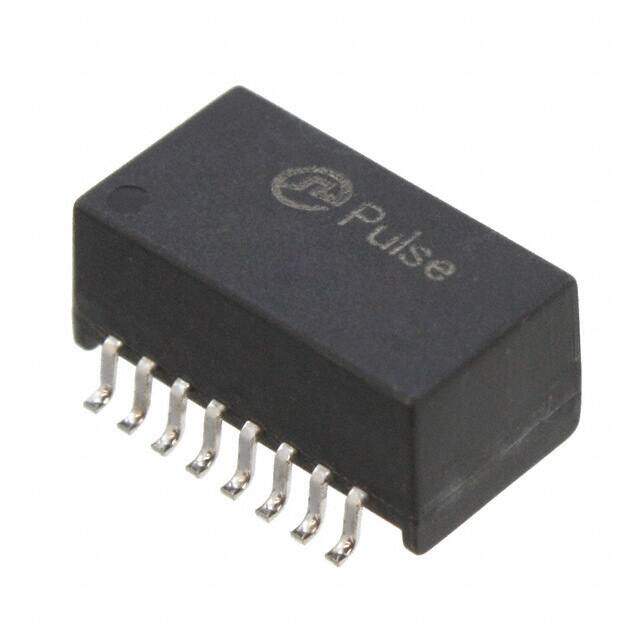

H2019FNL
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
PDF
/
Buying Options
Total Price: USD $6.89
Unit Price: USD $6.8904
≥1 USD $6.8904
≥10 USD $5.35744
≥100 USD $4.48844
≥500 USD $4.28582
≥1000 USD $4.19892
≥3000 USD $4.126505
Inventory: 1688
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Number of Pins 16
Technical
Operating Temperature 0°C~70°C
Published 2013
Size / Dimension 0.500Lx0.358W 12.70mmx9.09mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Depth 9.53mm
Inductance 350μH
Lead/Base Style Gull Wing
Insertion Loss (dB) -1.2 dB
Isolation Voltage 1.5kV
Transformer Type LAN 10G Base-T
Turns Ratio - Primary:Secondary 1:1
Return Loss -12 dB
Dimensions
Height 6mm
Height Seated (Max) 0.236 5.99mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
