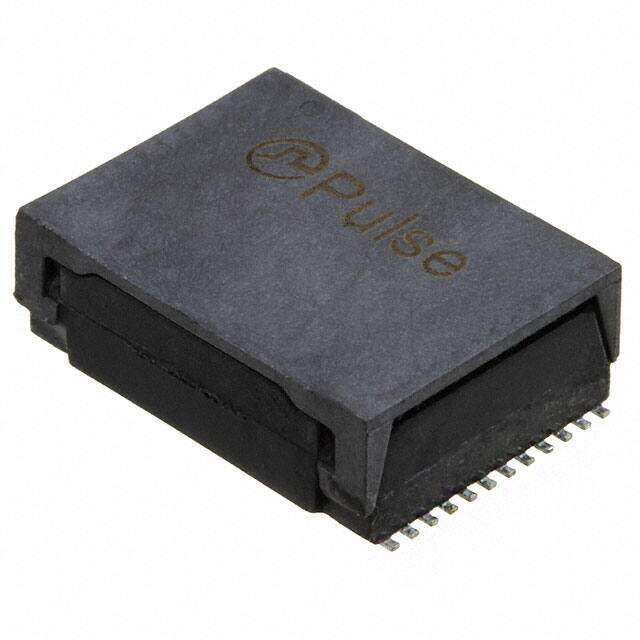

H2009FNL
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1:1/1:1/1:1/1:1 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 24Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $10.07
Unit Price: USD $10.0672
≥1 USD $10.0672
≥10 USD $7.71232
≥100 USD $6.534378
≥500 USD $6.427265
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 24
Technical
Operating Temperature 0°C~70°C
Packaging Bulk
Published 2013
Size / Dimension 0.518Lx0.703W 13.16mmx17.86mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Depth 18.67mm
Inductance 350μH
DC Resistance (DCR) 650mOhm
Lead/Base Style Gull Wing
Insertion Loss (dB) -1.2 dB
Transformer Type LAN 10G Base-T
Turns Ratio - Primary:Secondary 1:1
Dimensions
Height Seated (Max) 0.241 6.12mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
