H2006ANLT
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description

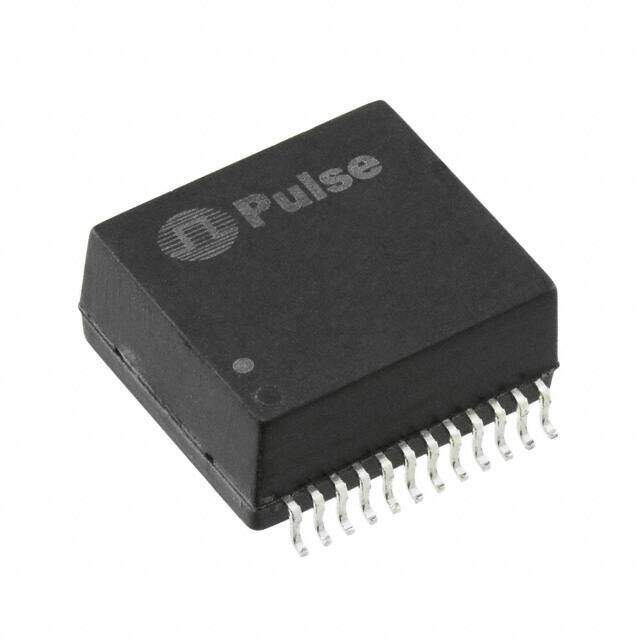

Telecom Transformer 1:1 3.5Ohm Prim. DCR 24Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $7.75
Unit Price: USD $7.7528
≥1 USD $7.7528
≥10 USD $6.02888
≥100 USD $5.866432
≥500 USD $5.051552
≥1000 USD $4.823368
Inventory: 1176
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Number of Pins 24
Weight 0.09oz 2.56g
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 0.537Lx0.470W 13.64mmx11.94mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Additional Feature HEIGHT DIM INCLUDES TERMINALS ALSO
Number of Functions 2
Depth 11.94mm
Approval Agency UL
Physical Dimension 13.64mm X 11.94mm X 6.22mm
DC Resistance (DCR) 3.5Ohm
Lead/Base Style Gull Wing
Application 10/100 BASE-TX; ETHERNET
Insertion Loss (dB) -1.2 dB
Isolation Voltage 1.5kV
Transformer Type Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary 1:1
Return Loss -12 dB
Dimensions
Height 6.47mm
Height Seated (Max) 0.254 6.45mm
Length 13.64mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
