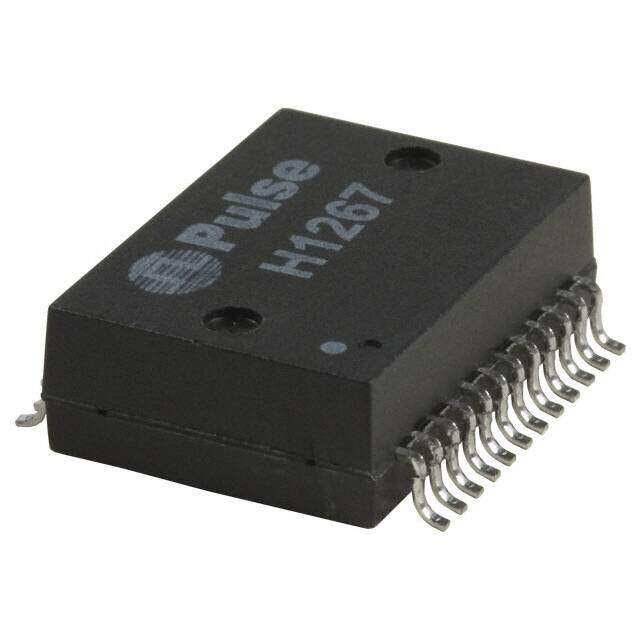

H1267NLT
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1CT:1CT 24Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $5.02
Unit Price: USD $5.0248
≥1 USD $5.0248
≥10 USD $3.81656
≥100 USD $3.716416
≥500 USD $3.415104
≥1000 USD $3.2142
Inventory: 870
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 12.2mm
Length 17.65mm
Height Seated (Max) 0.227 5.76mm
Technical
Primary Inductance 350 μH
Return Loss -16 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1500V
Insertion Loss (dB) -1 dB
Application GENERAL PURPOSE
Lead/Base Style Gull Wing
Physical Dimension L17.65XB12.2XH5.47 (mm)
Depth 16mm
Number of Functions 1
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.690Lx0.480W 17.53mmx12.20mm
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Weight 0.1oz 2.85g
Number of Pins 24
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
