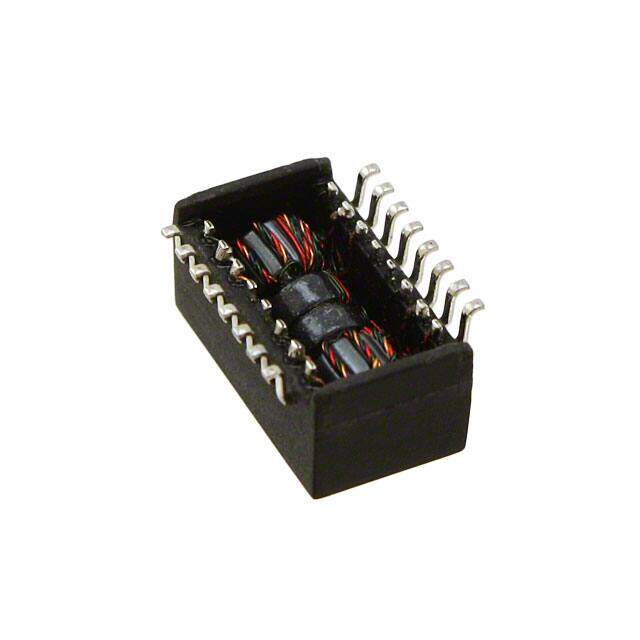

H1199NL image
Favorite
H1199NL image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Pulse Transformers
Description XFRMR MAGNETIC 1PORT 1:1 10/100
PDF
/
Inventory: 7515
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.245 6.22mm
Height 6.22mm

Technical

Return Loss -11 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1.5kV
Insertion Loss (dB) -0.9 dB
Lead/Base Style Gull Wing
DC Resistance (DCR) 650mOhm
Inductance 350 μH
Depth 9.53mm
Connector Type TELECOM AND DATACOM CONNECTOR
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.500Lx0.280W 12.70mmx7.11mm
Published 2008
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Weight 0.03oz 0.85g
Number of Pins 16
Mounting Type Surface Mount
Mount Surface Mount
