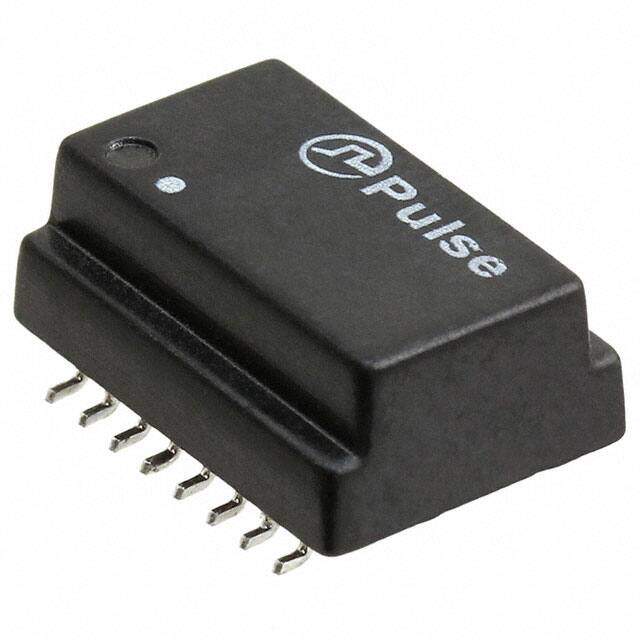

H1197FNL
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
Audio & Signal Transformers 100BaseTX SMD NonPoE 1200uH .8Ohms 1-Port
PDF
/
Buying Options
Total Price: USD $4.46
Unit Price: USD $4.4616
≥1 USD $4.4616
≥10 USD $3.39064
≥100 USD $3.03358
≥500 USD $2.85516
≥1000 USD $2.765902
≥3000 USD $2.67667
Inventory: 651
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Number of Pins 16
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2013
Size / Dimension 0.500Lx0.358W 12.70mmx9.09mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Inductance 1.2mH
Lead/Base Style Gull Wing
Isolation Voltage 1.5kV
Transformer Type LAN 10/100 Base-T
Turns Ratio - Primary:Secondary 1:1
Dimensions
Height 6mm
Height Seated (Max) 0.236 5.99mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
