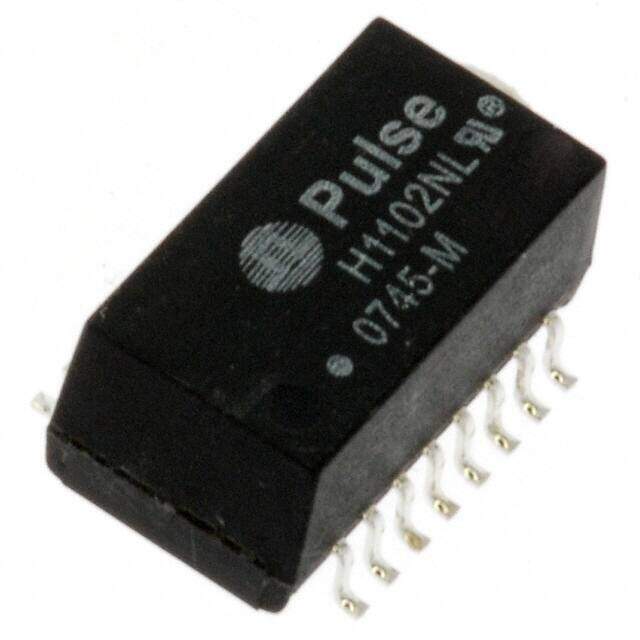

H1102NL
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
Telecom Transformer 2(1: 1) 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 16 Terminal Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $4.67
Unit Price: USD $4.6728
≥1 USD $4.6728
≥10 USD $3.55256
≥100 USD $3.179
≥500 USD $2.991894
≥1000 USD $2.898403
≥3000 USD $2.804912
Inventory: 16231
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.11mm
Length 12.7mm
Height Seated (Max) 0.245 6.22mm
Height 6.09mm
Technical
Return Loss -20 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1.5kV
Insertion Loss (dB) -1.1 dB
Application GENERAL PURPOSE
Lead/Base Style Gull Wing
DC Resistance (DCR) 650mOhm
Inductance 350 μH
Physical Dimension L12.7XB7.11XH5.97 (mm)
Depth 9.53mm
Number of Functions 1
Shielding Unshielded
Additional Feature HEIGHT DIMENSION INCLUDE TERMINAL ALSO
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.500Lx0.280W 12.70mmx7.11mm
Published 2007
Packaging Tube
Operating Temperature 0°C~70°C
Physical
Weight 0.03oz 0.85g
Number of Pins 16
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
