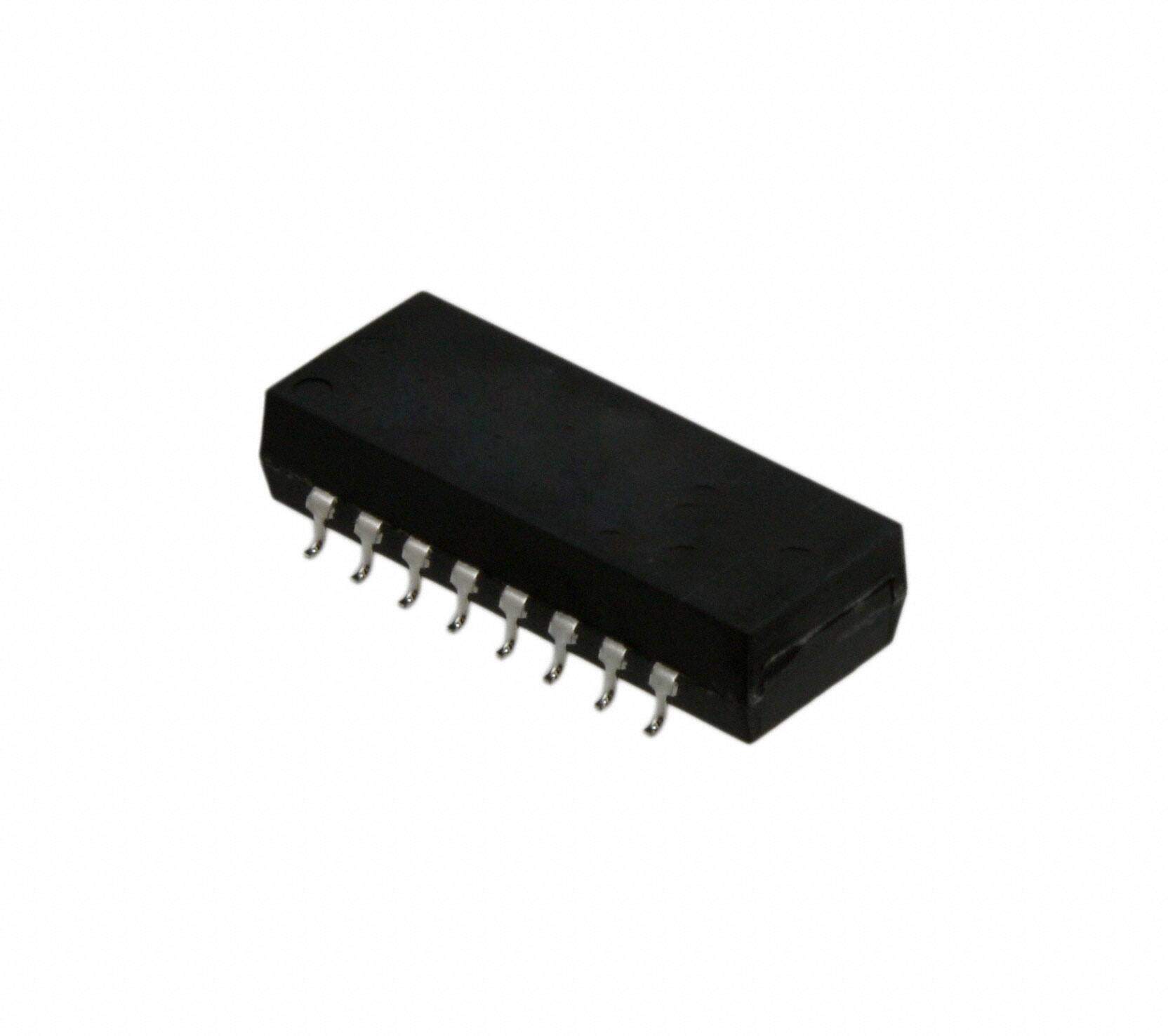

H1081NL
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Transformers / Pulse Transformers
Description
XFRMR MODUL 1PORT 1:1.141 10/100
PDF
/
Buying Options
Total Price: USD $4.77
Unit Price: USD $4.7696
≥1 USD $4.7696
≥10 USD $3.71052
≥100 USD $3.531
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Number of Pins 16
Weight 0.11oz 3.13g
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2007
Size / Dimension 1.000Lx0.395W 25.40mmx10.03mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature COMPATIBLE WITH AMD AND MICREL, HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Shielding Unshielded
Number of Functions 1
Depth 12.7mm
Physical Dimension L25.4XB10.03XH5.71 (mm)
Lead/Base Style Gull Wing
Application 10/100 BASE-TX
Insertion Loss (dB) -2 dB
Isolation Voltage 1.5kV
Transformer Type Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary 1:1.414
Return Loss -18 dB
Primary Inductance 350 μH
Dimensions
Height 5.84mm
Height Seated (Max) 0.230 5.84mm
Length 25.4mm
Width 10.03mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
