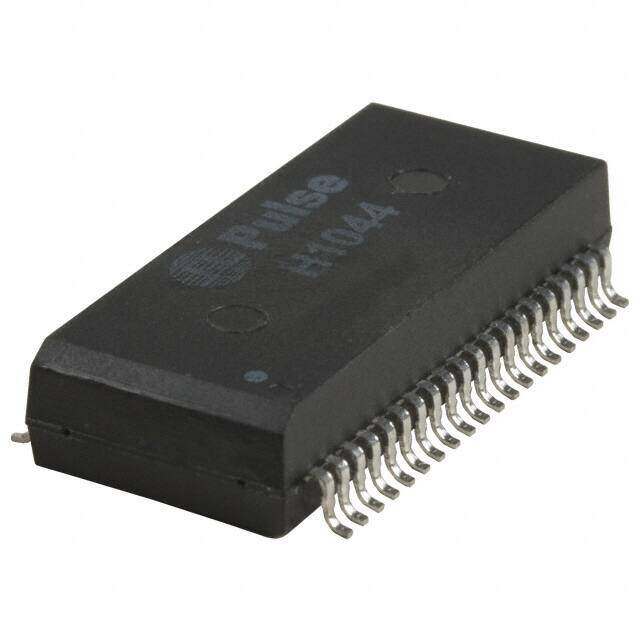

H1044NL
RoHS
/
Package /
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1:1 40Term. Gull Wing SMD
PDF
/
Inventory: 6286
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 40
Weight 0.14oz 3.99g
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2009
Size / Dimension 1.125Lx0.480W 28.58mmx12.19mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Termination SMD/SMT
ECCN Code EAR99
Connector Type TELECOM AND DATACOM CONNECTOR
Depth 16mm
Lead/Base Style Gull Wing
Insertion Loss (dB) -0.5 dB
Transformer Type Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary 1:1
Return Loss -12 dB
Dimensions
Height 5.84mm
Height Seated (Max) 0.230 5.84mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
