RoHS
/
Package Module
Category Transformers / Pulse Transformers
Description

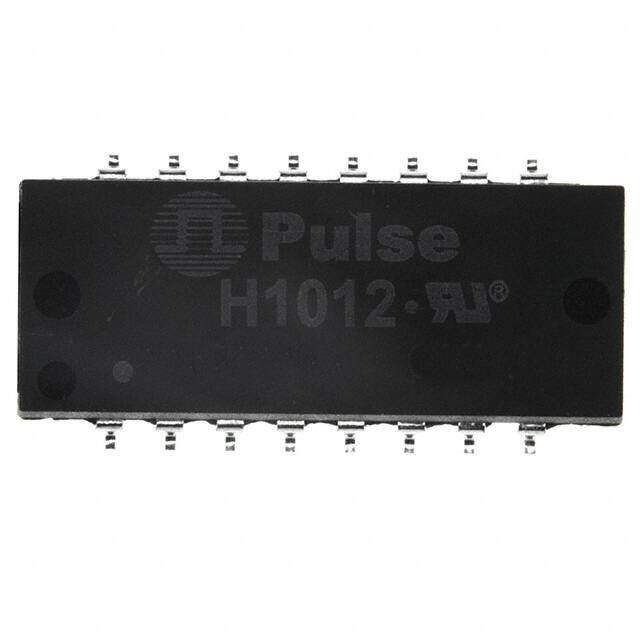

MODULE TRANSFMR SNGL LAN 16P SMD
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8303
≥1 USD $0.8303
≥10 USD $0.68115
≥100 USD $0.66025
≥500 USD $0.6384
≥1000 USD $0.6175
Inventory: 22507
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 9.91mm
Length 25.4mm
Height Seated (Max) 0.245 6.22mm
Height 6.22mm
Technical
Return Loss -14 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type LAN
Isolation Voltage 1.5kV
Insertion Loss (dB) -1 dB
Application 10/100 BASE-T
Lead/Base Style Gull Wing
Physical Dimension L25.4XB9.91XH6.22 (mm)
Current Rating 8mA
Depth 12.83mm
Number of Functions 1
Shielding Unshielded
Packing Method TUBE
Additional Feature HEIGHT DIMENSION INCLUDE TERMINAL ALSO
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Termination Pin
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Size / Dimension 1.000Lx0.390W 25.40mmx9.91mm
Published 2003
Packaging Bulk
Operating Temperature 0°C~70°C
Physical
Weight 0.11oz 3.13g
Number of Pins 16
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
