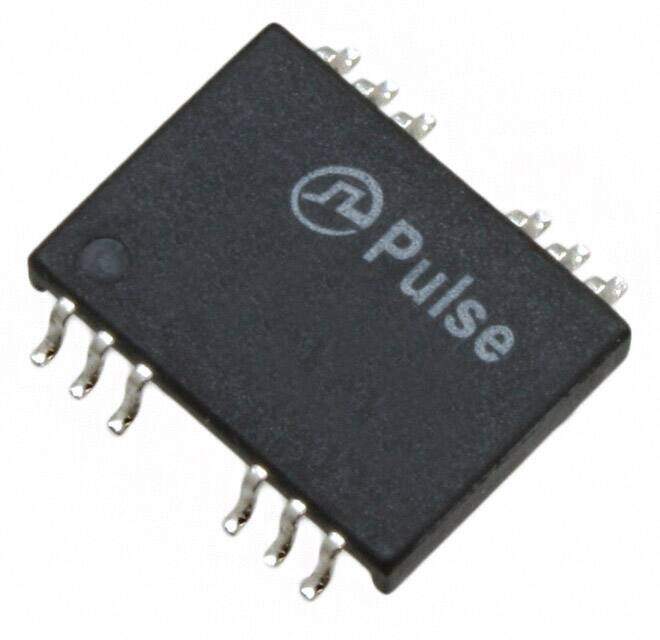

H0022NLT
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1:1/1:1 12Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥200 USD $2.26955
≥500 USD $2.1983
≥1000 USD $2.12705
Inventory: 1227
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 12
Weight 0.01oz 0.28g
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 0.465Lx0.340W 11.81mmx8.63mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Additional Feature HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Number of Functions 1
Depth 11.43mm
Physical Dimension L11.81XB8.63XH2.16 (mm)
Lead/Base Style Gull Wing
Application LAN; 10/100 BASE-TX; ETHERNET
Insertion Loss (dB) -2 dB
Isolation Voltage 1500V
Transformer Type Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary 1:1
Return Loss -18 dB
Dimensions
Height 2.16mm
Height Seated (Max) 0.085 2.16mm
Length 11.81mm
Width 8.63mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
