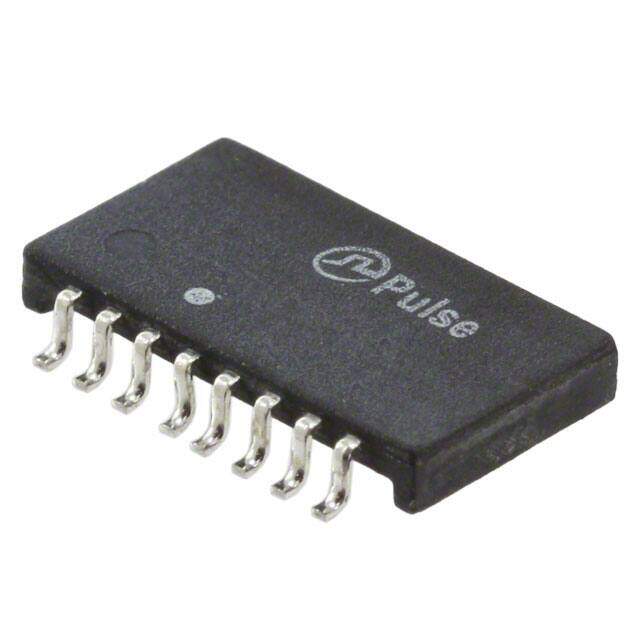

H0019NLT image
Favorite
H0019NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Transformers / Pulse Transformers
Description MODULE MAGNETIC LAN 1:1 10/100
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.4168
≥1 USD $2.4168
≥10 USD $1.98265
≥100 USD $1.9209
≥500 USD $1.85915
≥1000 USD $1.7974
Inventory: 257
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 16
Weight 0.01oz 0.28g

Technical

Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 0.500Lx0.280W 12.70mmx7.11mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Return Loss -11 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type Isolation and Data Interface (Encapsulated)
Isolation Voltage 1.5kV
Insertion Loss (dB) -0.9 dB
Application LAN; 10/100 BASE-TX; ETHERNET
Lead/Base Style Gull Wing
Physical Dimension L12.7XB7.11XH1.98 (mm)
Depth 9.65mm
Number of Functions 1
Shielding Unshielded
Additional Feature HEIGHT DIMENSION INCLUDES TERMINAL ALSO

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 7.11mm
Length 12.7mm
Height Seated (Max) 0.078 1.98mm
Height 1.98mm
