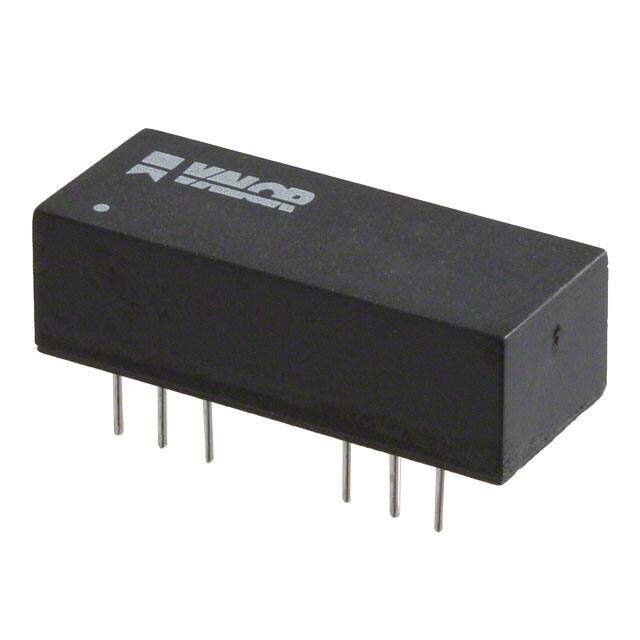

FL1012NL image
Favorite
FL1012NL image
Favorite
RoHS
/
Package DIP
Category Transformers / Pulse Transformers
Description MODULE FILTER SNGL LAN 16PIN TH
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0821
≥1 USD $12.0821
≥10 USD $9.91325
≥100 USD $9.60355
≥500 USD $9.29385
≥1000 USD $8.98415
Inventory: 68
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Number of Pins 12

Technical

Packaging Tube
Published 1998
Size / Dimension 0.995Lx0.395W 25.28mmx10.03mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
Number of Functions 1
Depth 10.29mm
Operating Temperature (Max) 70°C
Physical Dimension L25.53XB10.29XH8.59 (mm)
DC Resistance (DCR) 5Ohm
Lead/Base Style PC Pin
Application GENERAL PURPOSE
Insertion Loss (dB) 1 dB
Isolation Voltage 1.5kV
Transformer Type LAN
Turns Ratio - Primary:Secondary 1CT:1CT
Return Loss 17 dB
Turns Ratio (NpNs) 1:1

Dimensions

Height 8.59mm
Height Seated (Max) 0.338 8.59mm
Length 25.53mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
