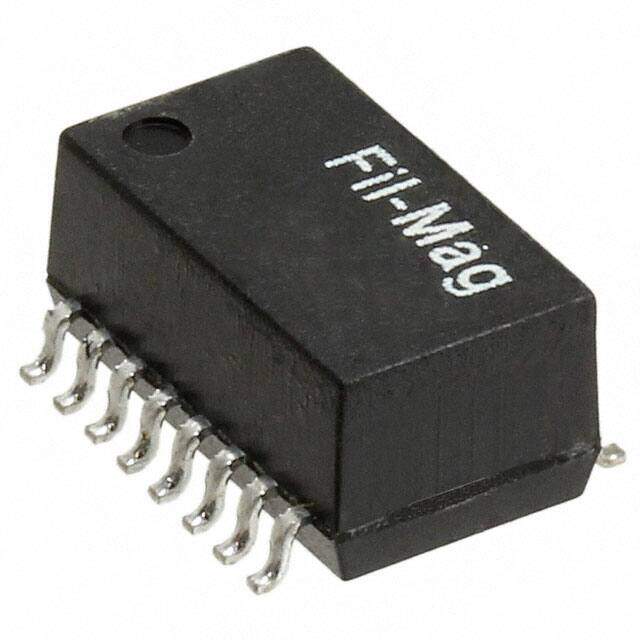

23Z467SM image
Favorite
23Z467SM image
Favorite
RoHS
/
Package SMD/SMT
Category Transformers / Pulse Transformers
Description Telecom Transformer 1CT:2CT/1CT:1CT 0.6Ohm Prim. DCR 16Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $4.75
Unit Price: USD $4.752
≥1 USD $4.752
≥10 USD $3.61416
≥100 USD $3.23356
Inventory: 135
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Width 6.73mm
Length 11.43mm
Height Seated (Max) 0.215 5.46mm
Height 9.14mm

Technical

Turns Ratio - Primary:Secondary 1:2
Transformer Type LAN 10G Base-T
Isolation Voltage 2000V
Application 10 BASE-T
Lead/Base Style Gull Wing
DC Resistance (DCR) 600mOhm
Inductance 140μH
Physical Dimension L11.43XB6.73XH5.46 (mm)
Depth 9.14mm
Number of Functions 2
Shielding Unshielded
Additional Feature HEIGHT DIMENSION INCLUDE TERMINAL ALSO
Terminal Finish Tin/Copper (Sn/Cu)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code no
JESD-609 Code e2
Size / Dimension 0.450Lx0.265W 11.43mmx6.73mm
Published 2010
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Weight 850.003752mg
Number of Pins 16
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Lead, Tin

Supply Chain

Factory Lead Time 13 Weeks
