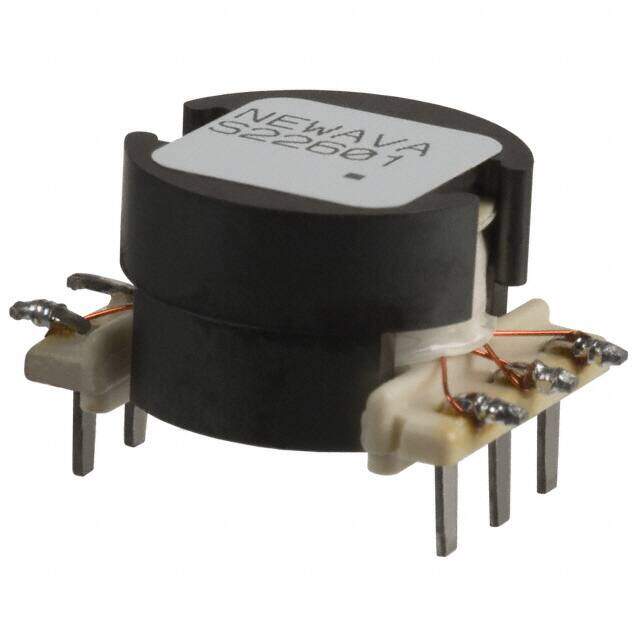

S22601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
TRANSFORMER 1CT:1TR 2.5mH
PDF
/
Buying Options
Total Price: USD $10.2
Unit Price: USD $10.198607
≥1 USD $10.198607
≥200 USD $4.06999
≥500 USD $3.933448
≥1000 USD $3.866491
Inventory: 8404
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.360 9.14mm
Height 11.4mm
Technical
Turns Ratio - Primary:Secondary 1:1
Transformer Type PULSE TRANSFORMER
Inductance 2.5mH
Reach Compliance Code unknown
Part Status Active
Size / Dimension 0.550Lx0.800W 13.97mmx20.32mm
Published 2003
Packaging Bulk
Physical
Number of Pins 6
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
